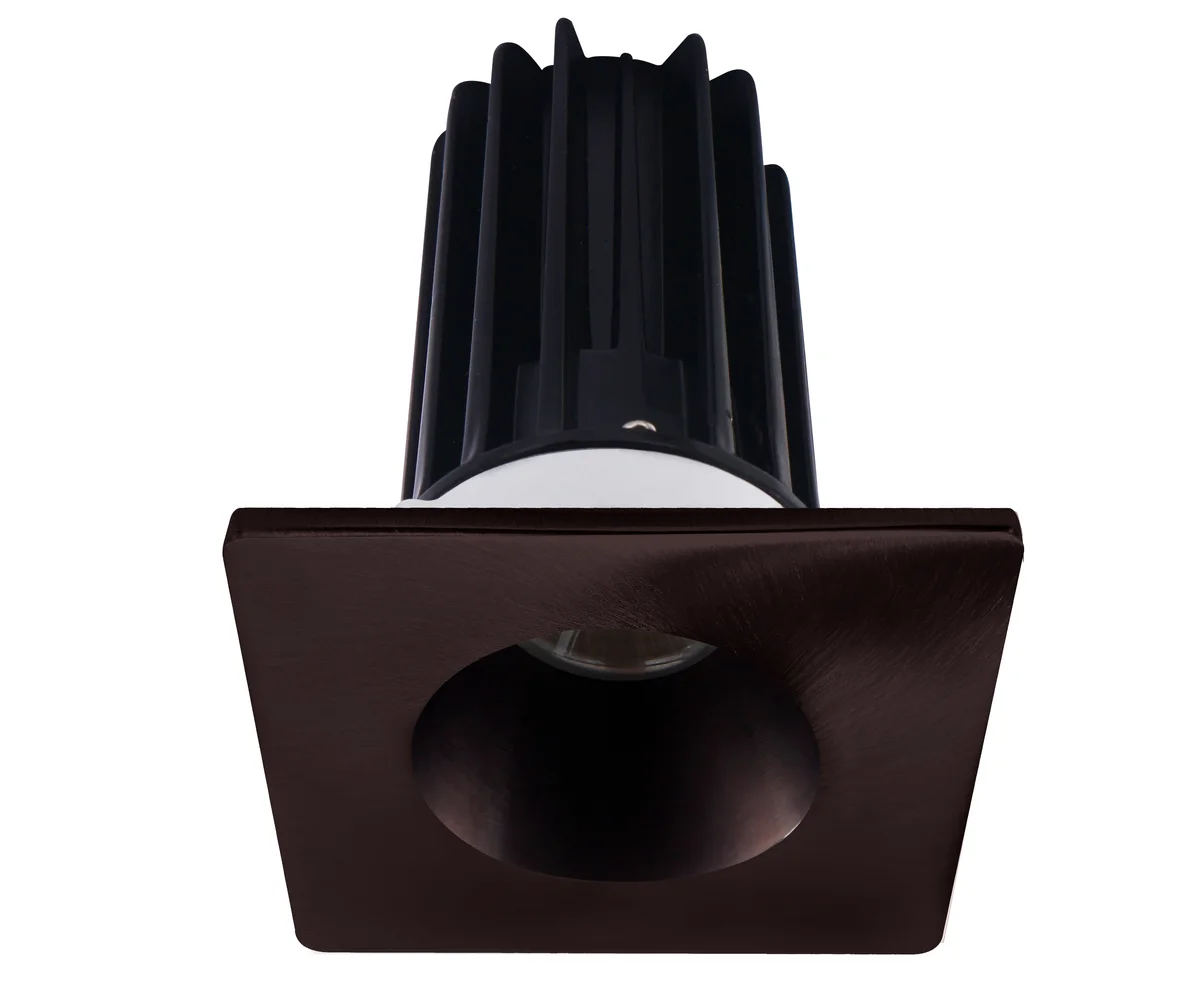

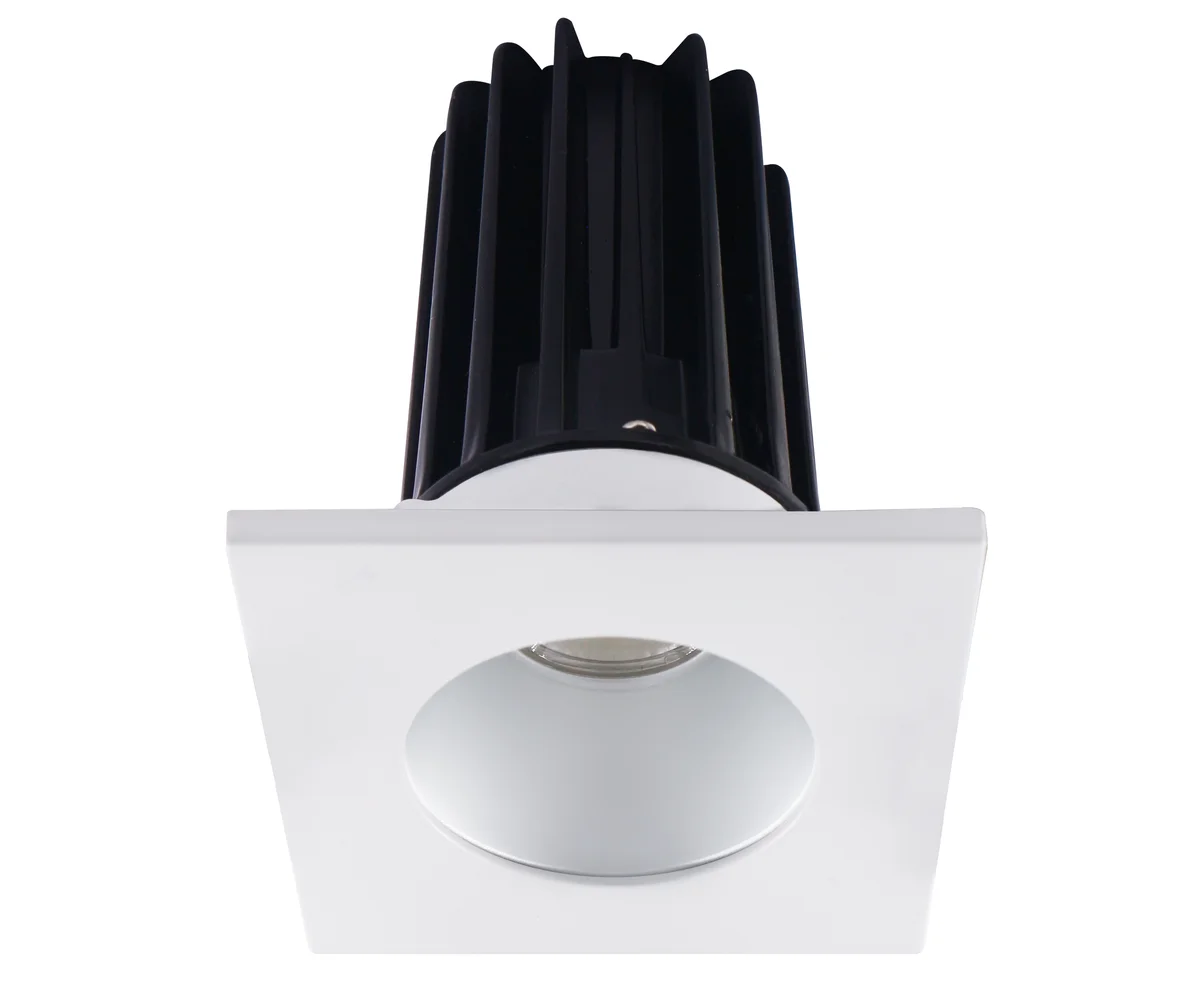

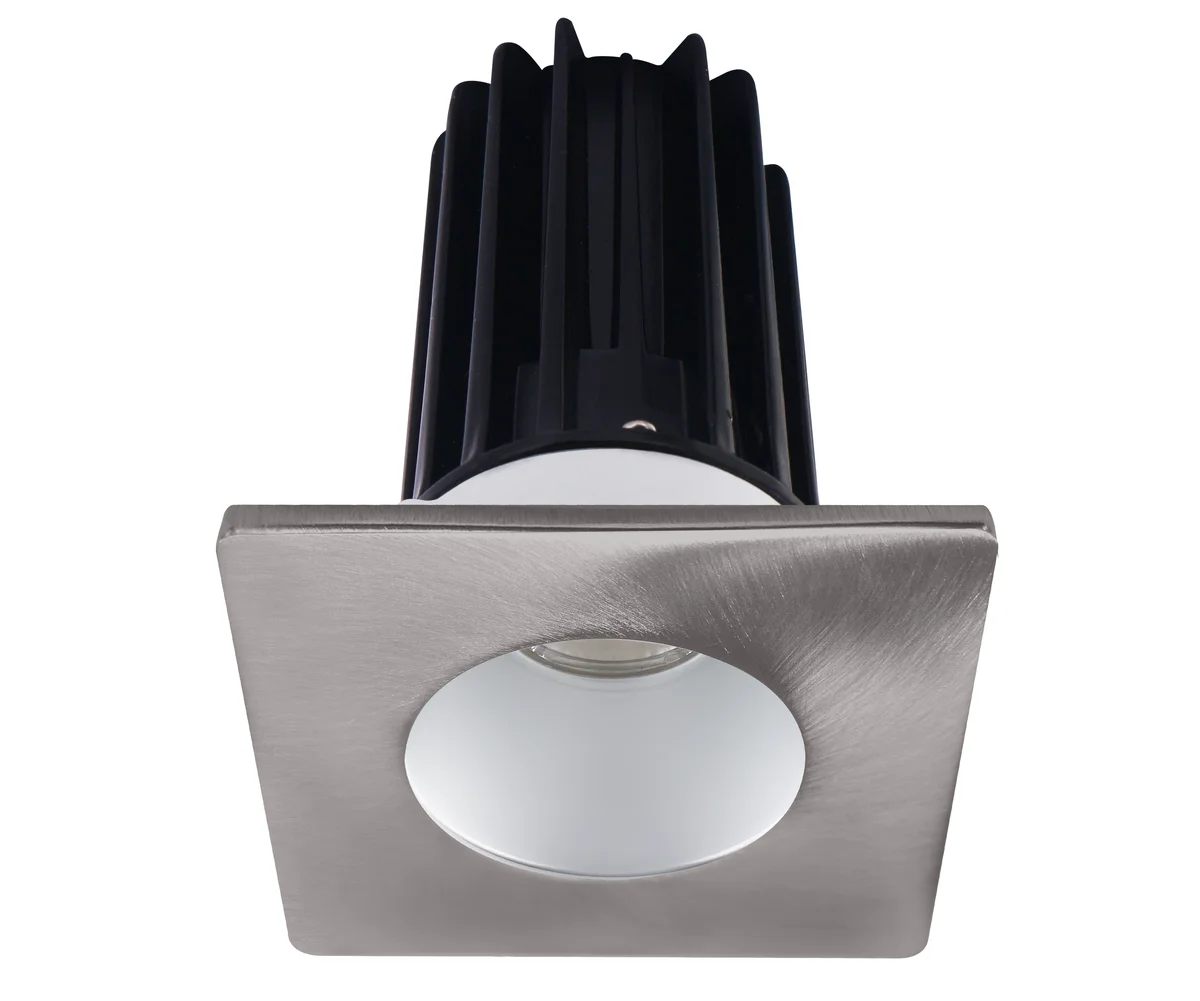

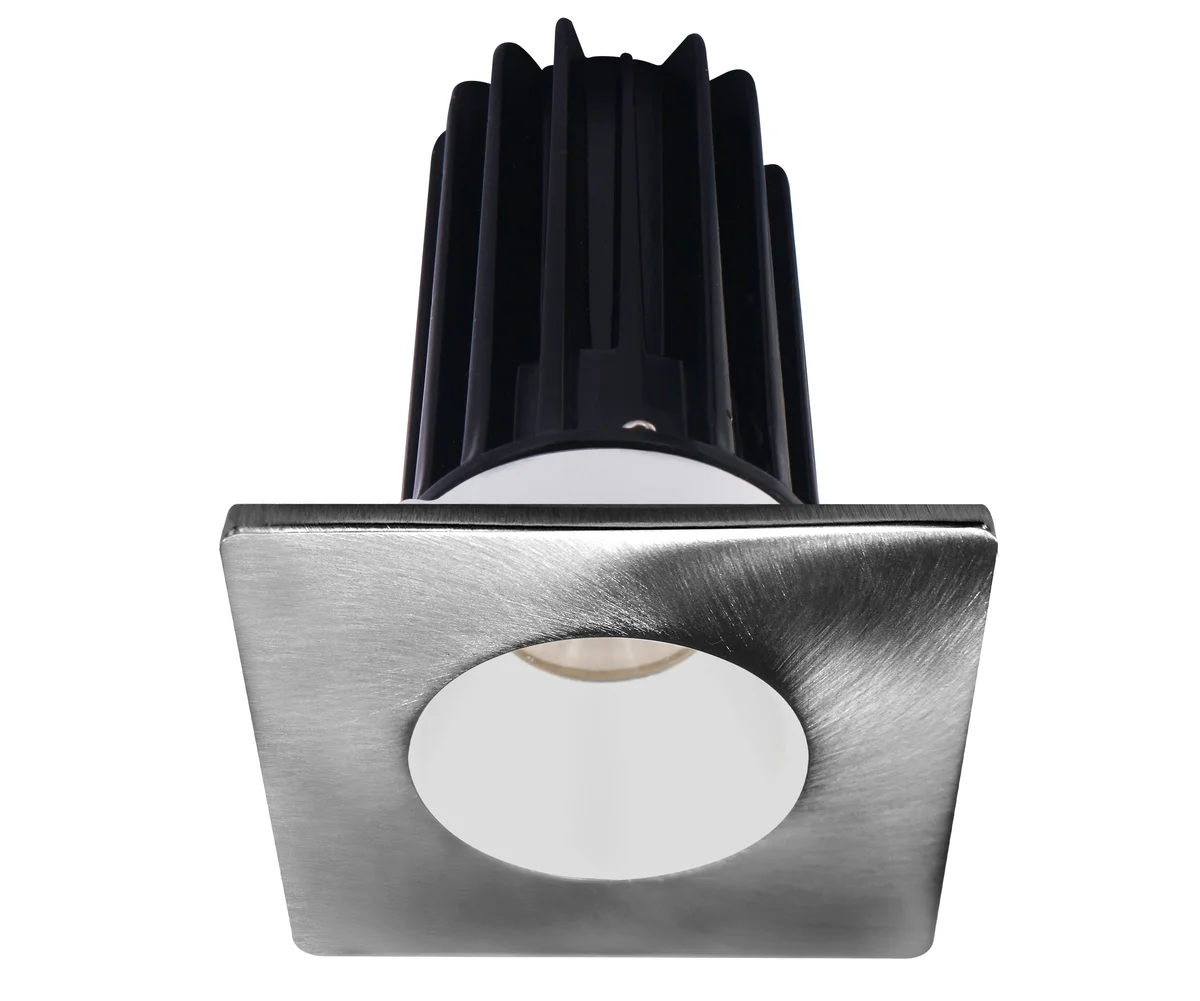

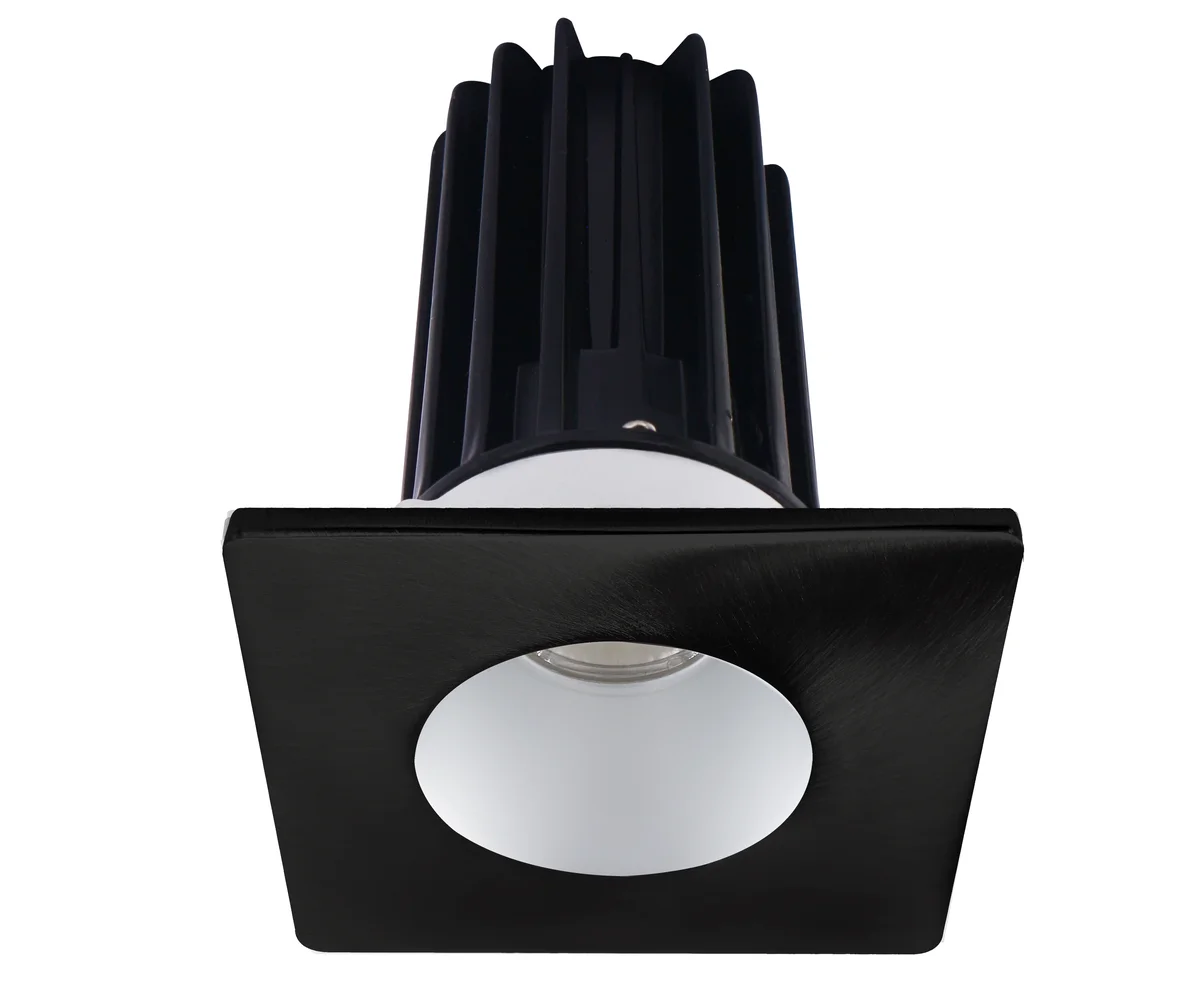

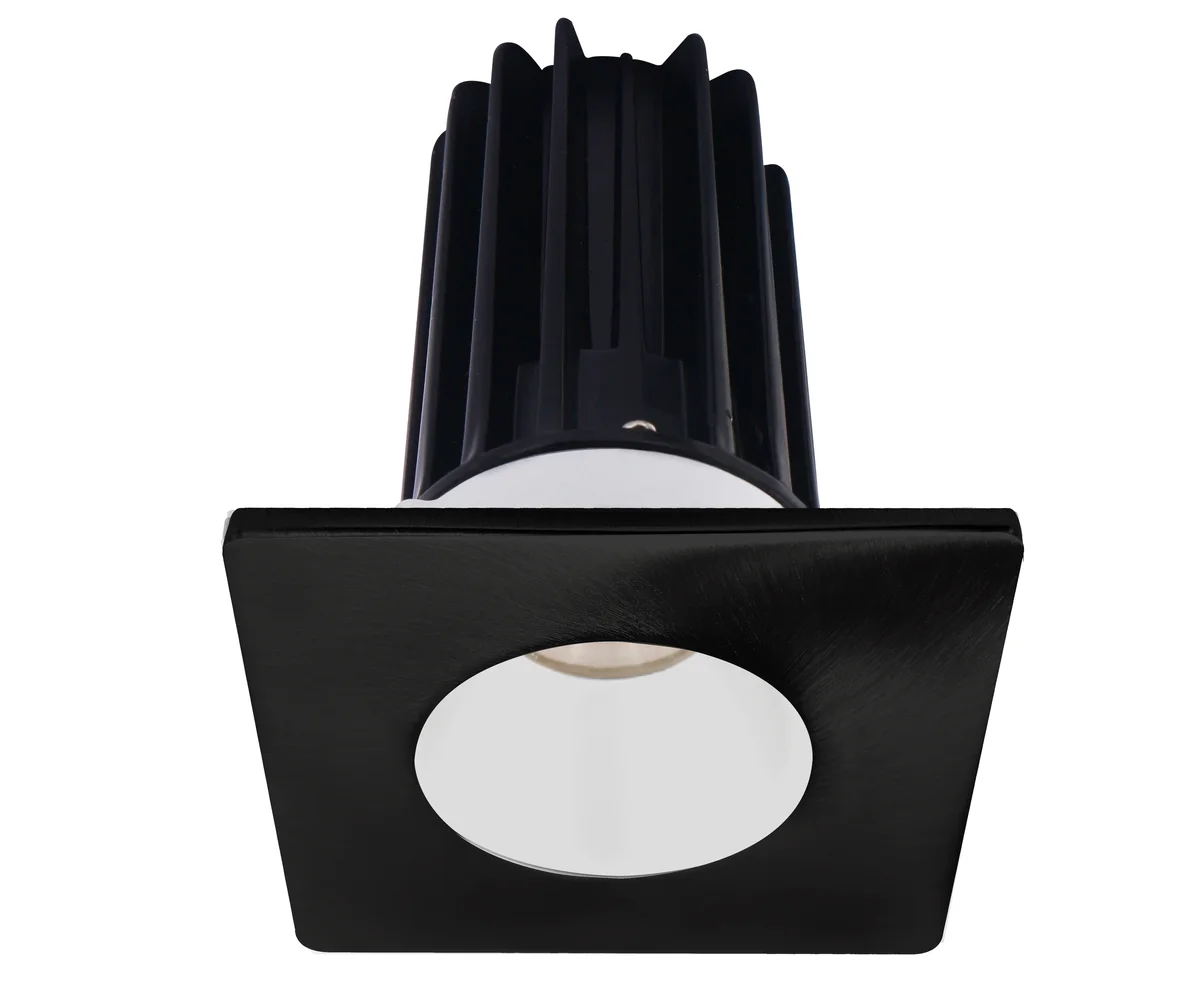

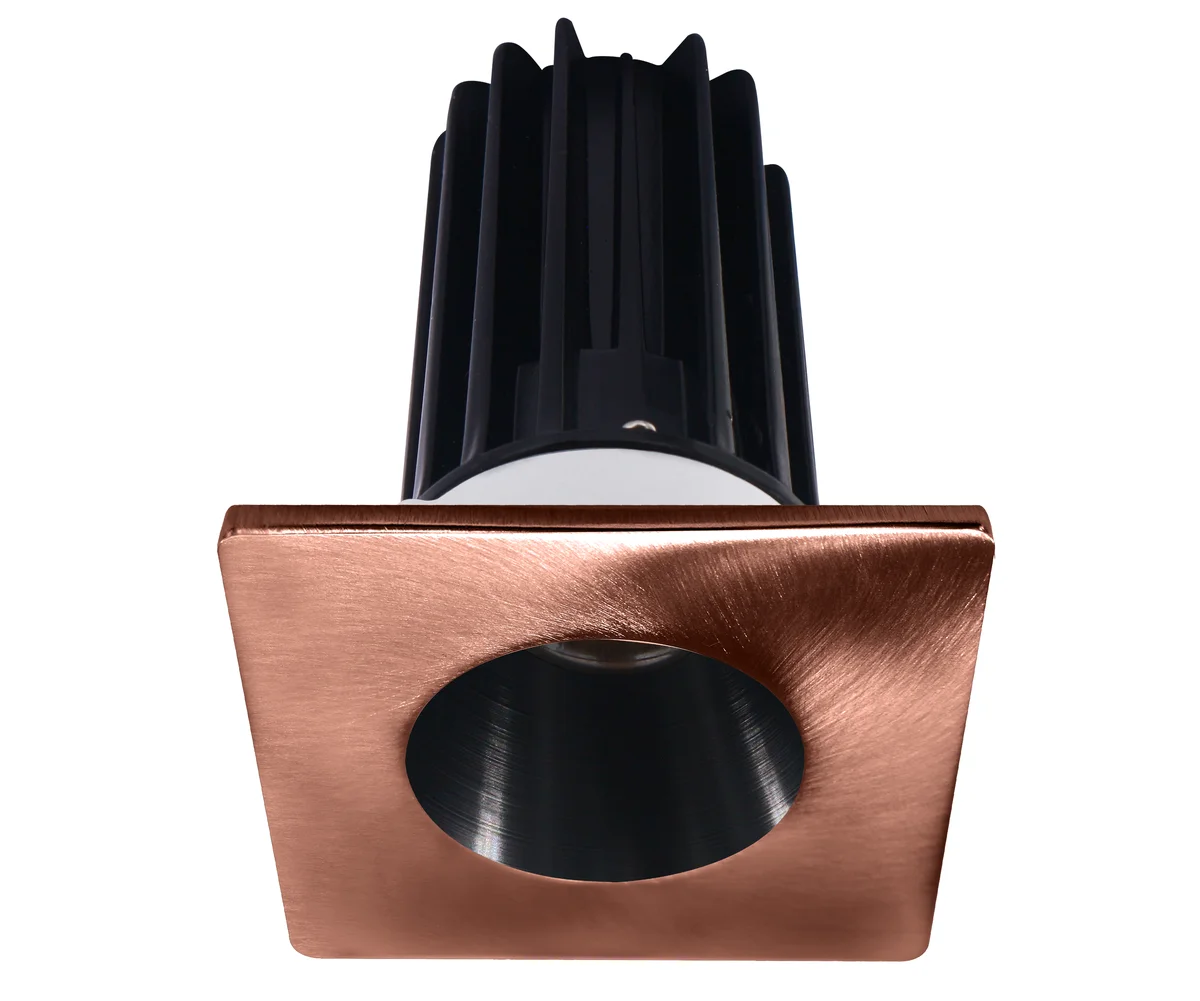

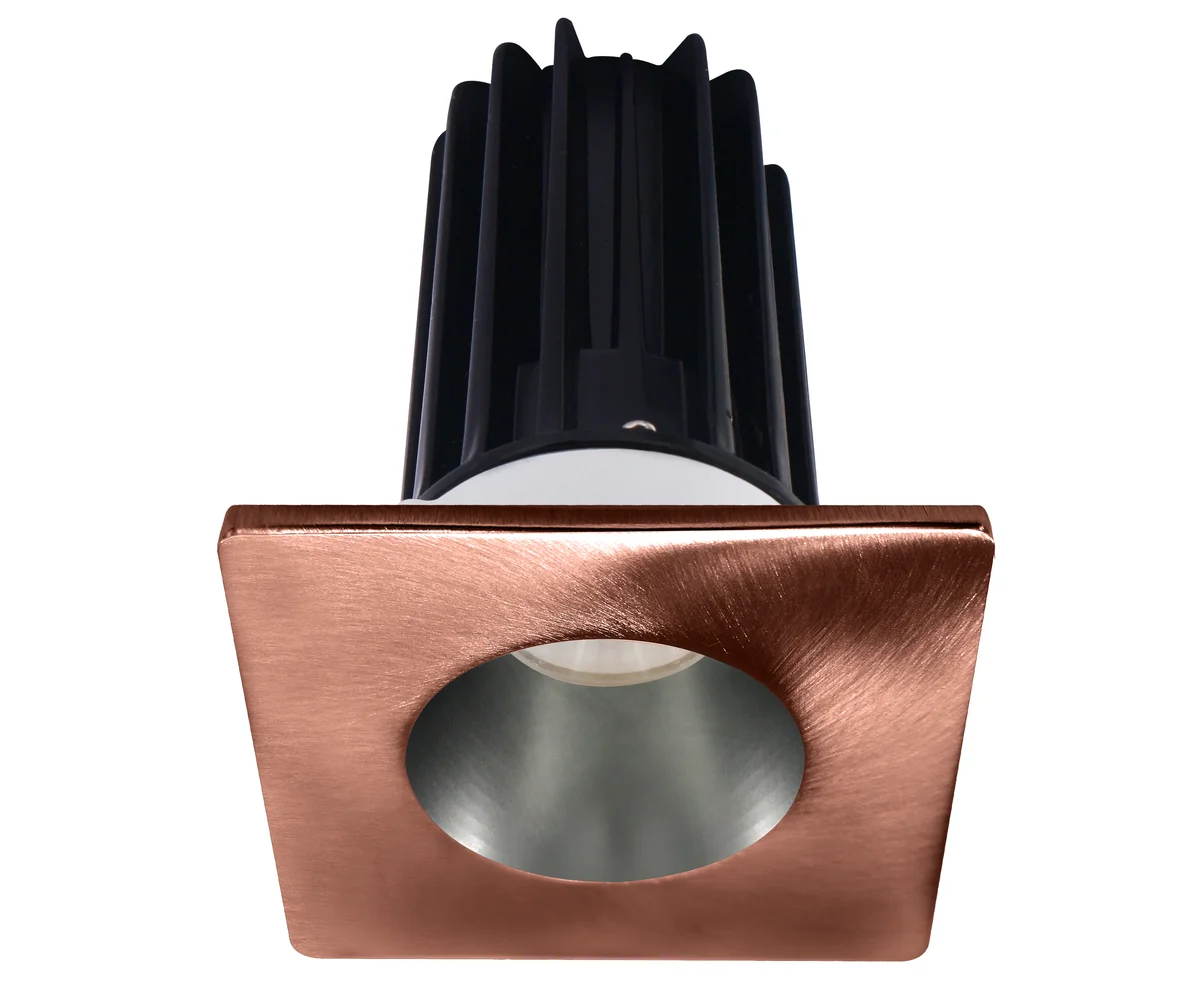

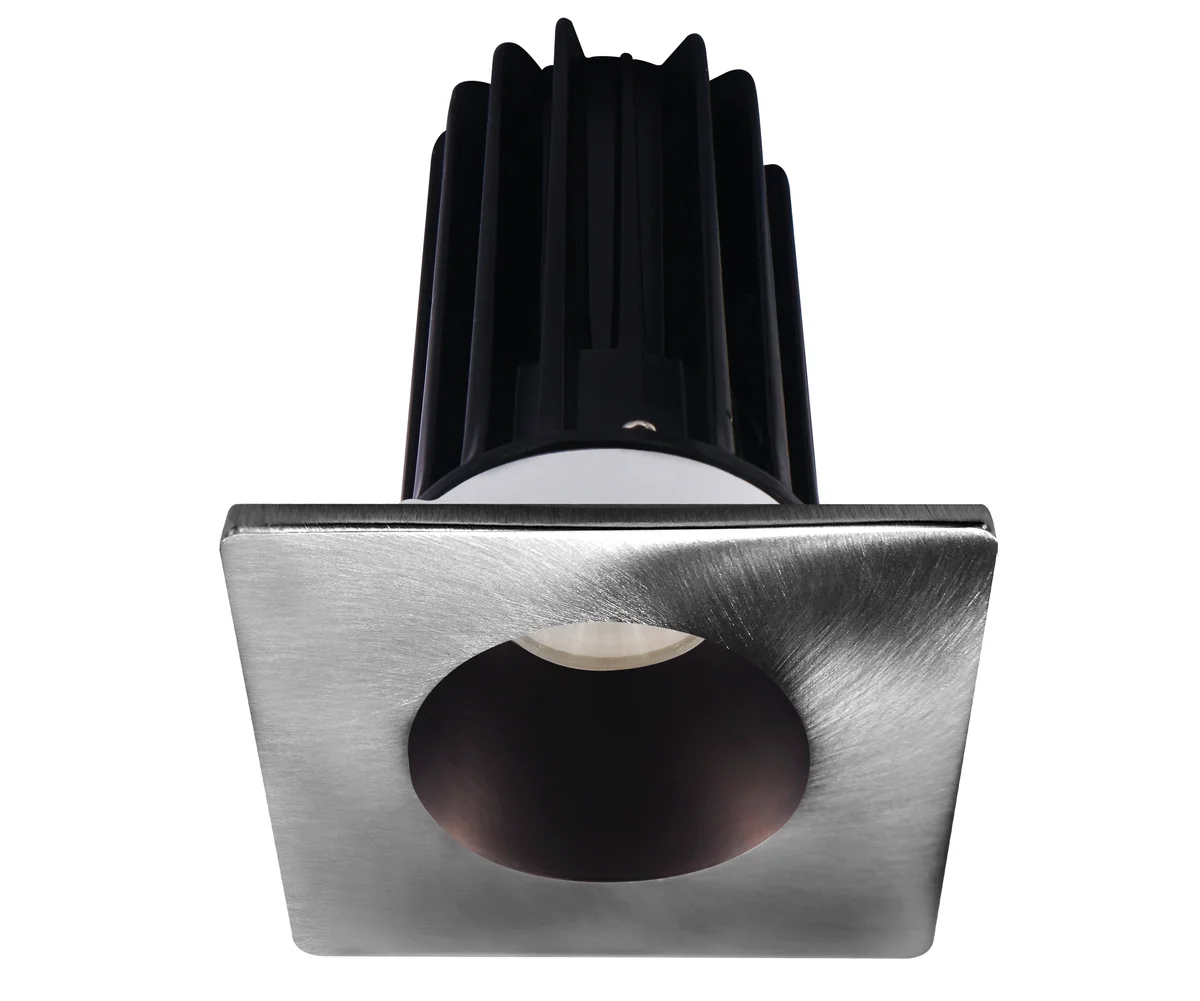

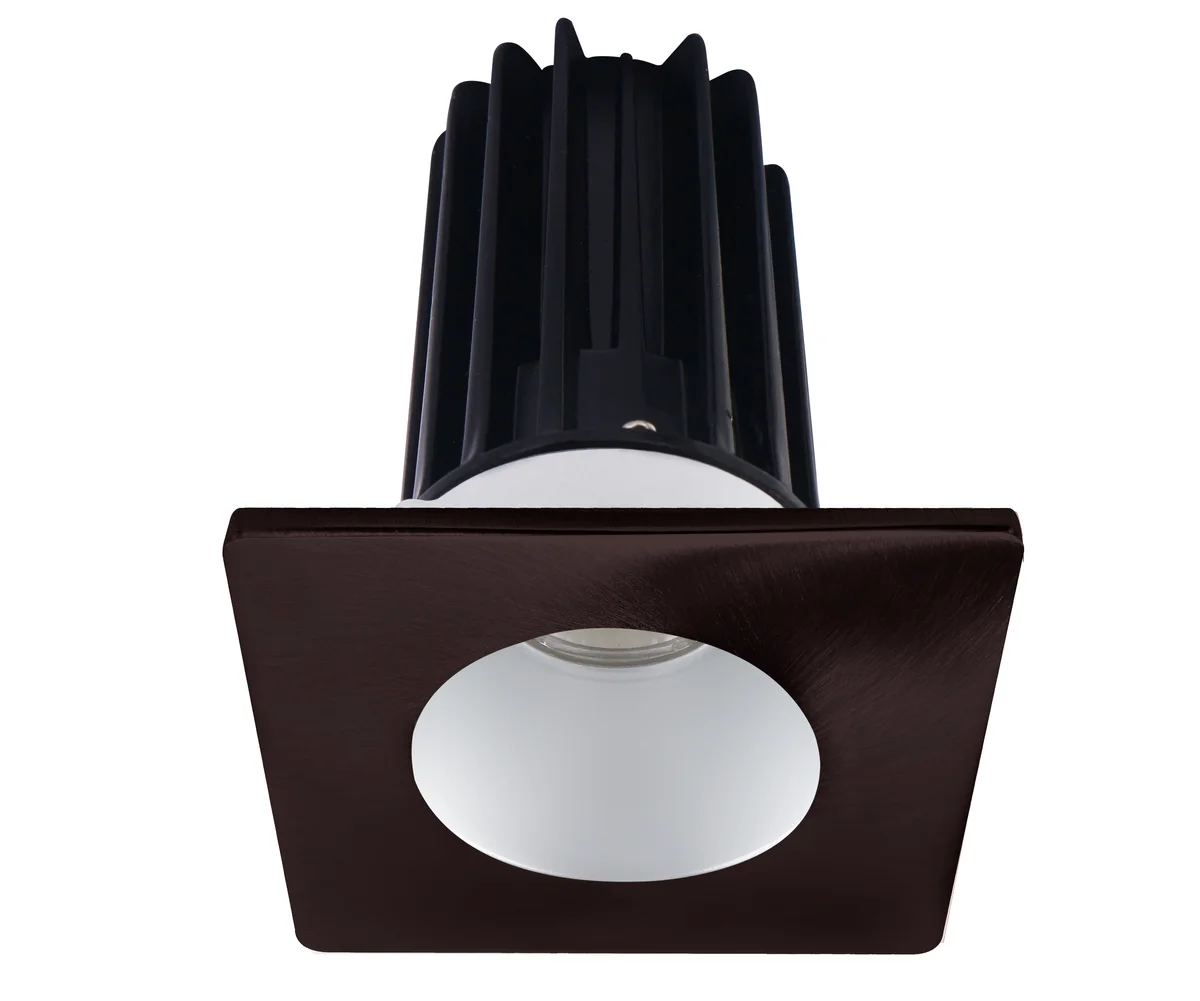

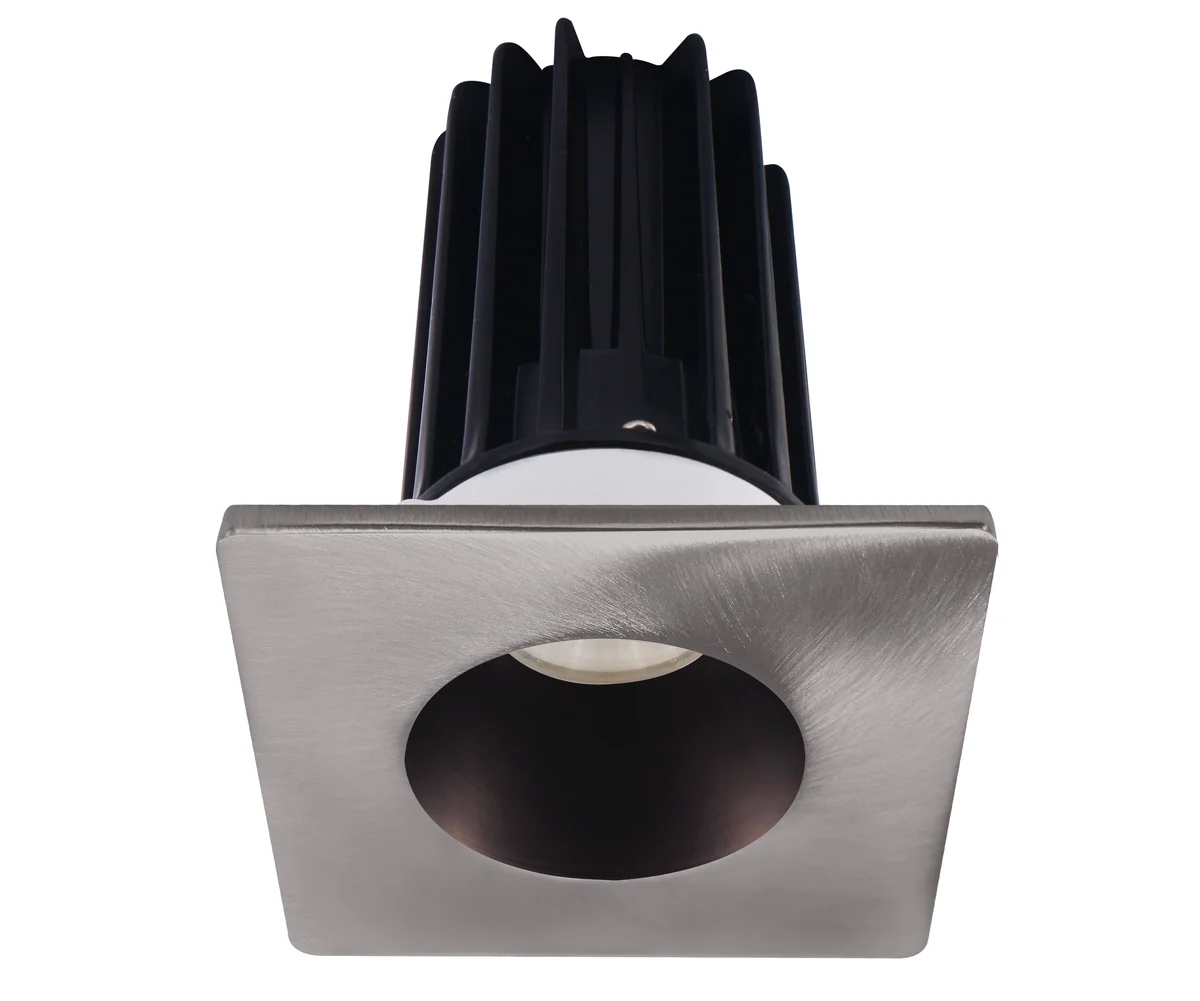

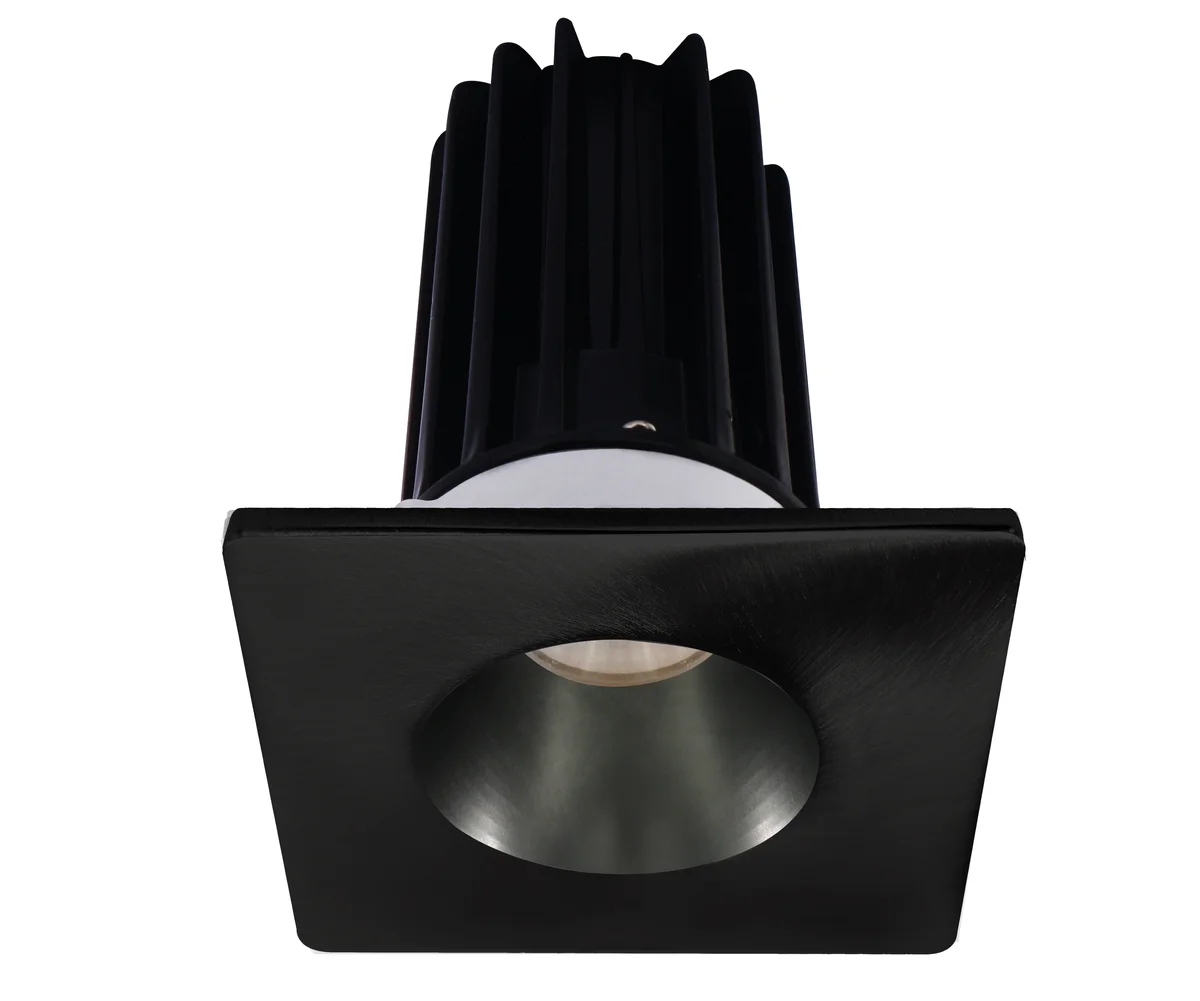

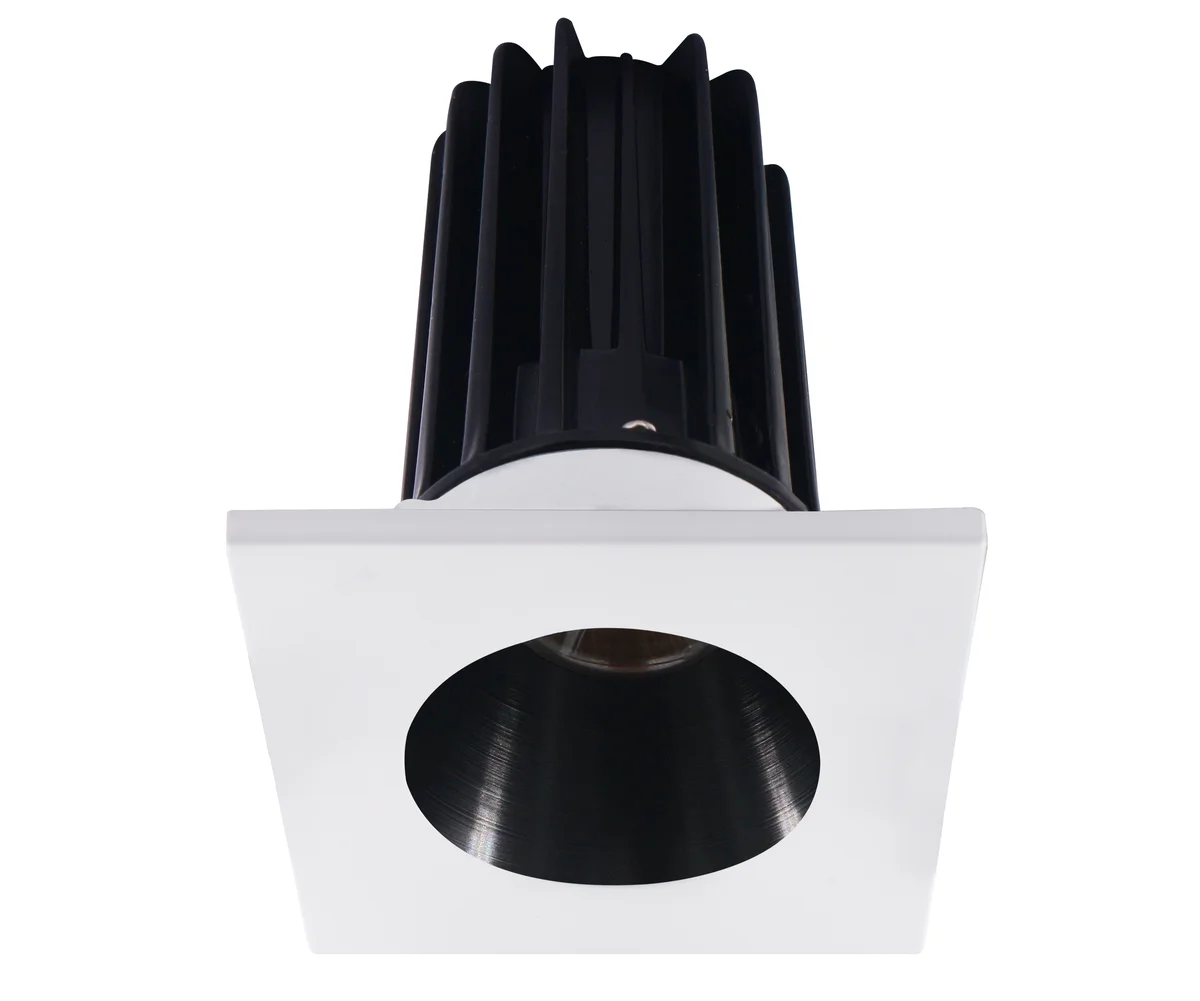

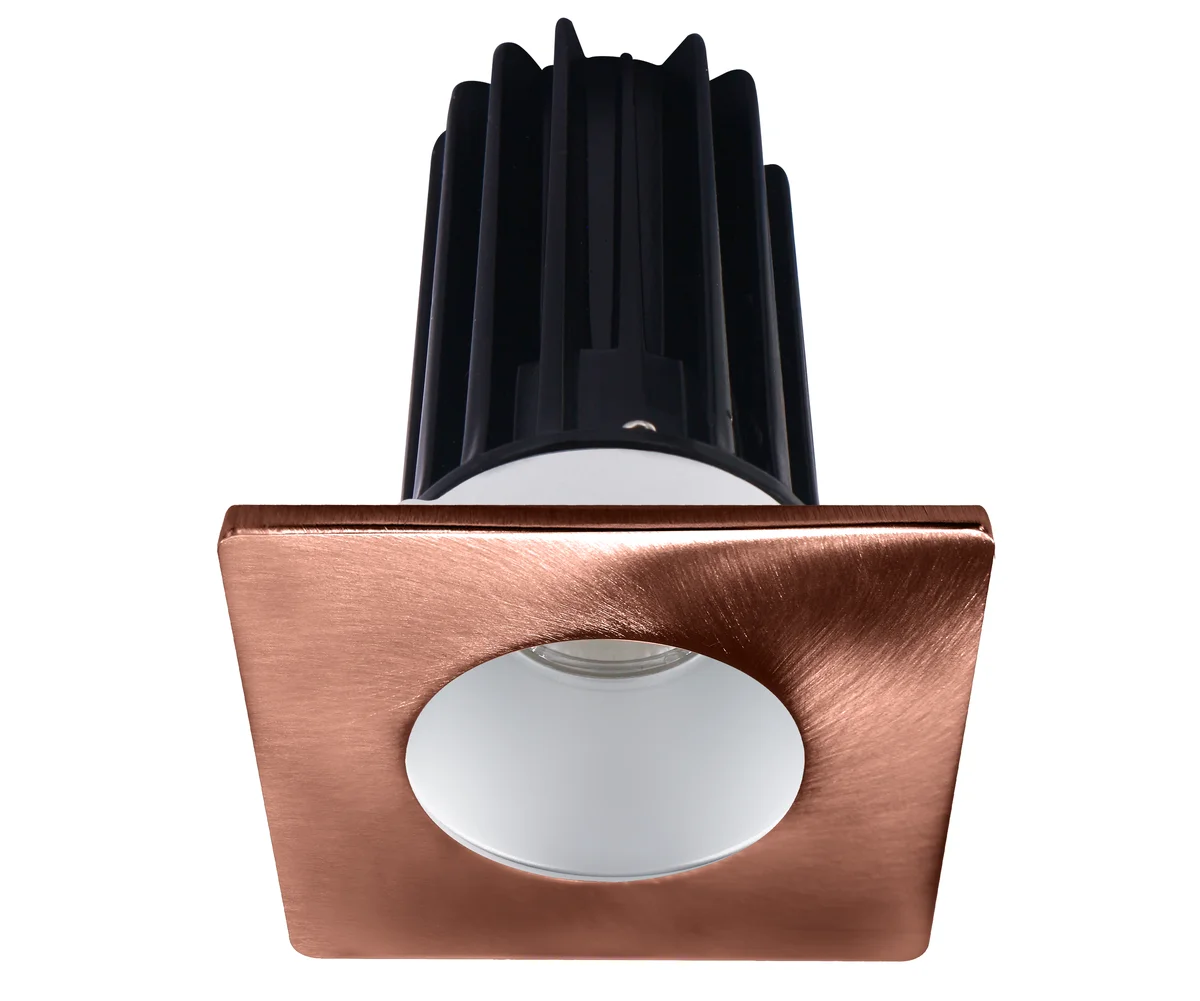

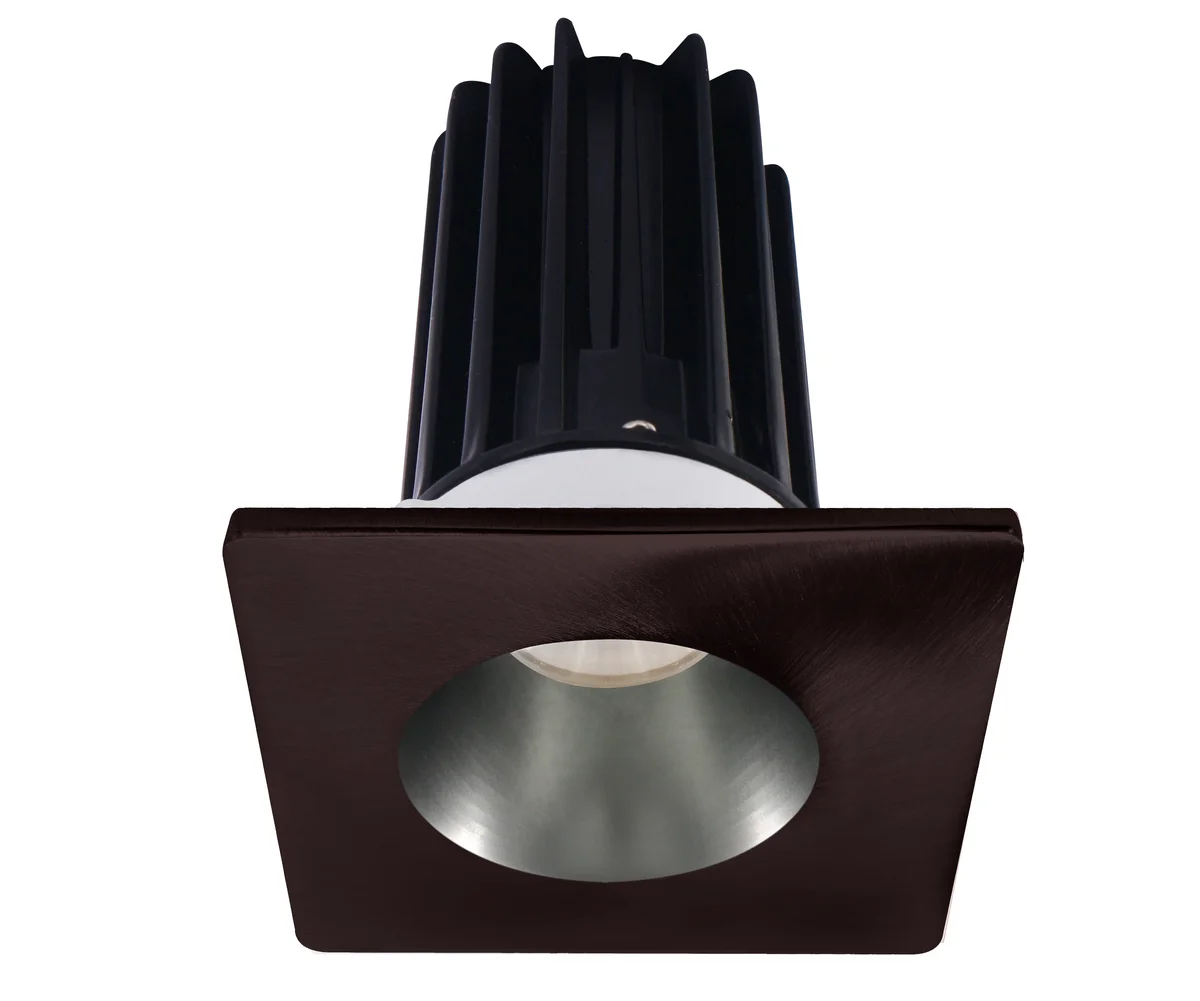

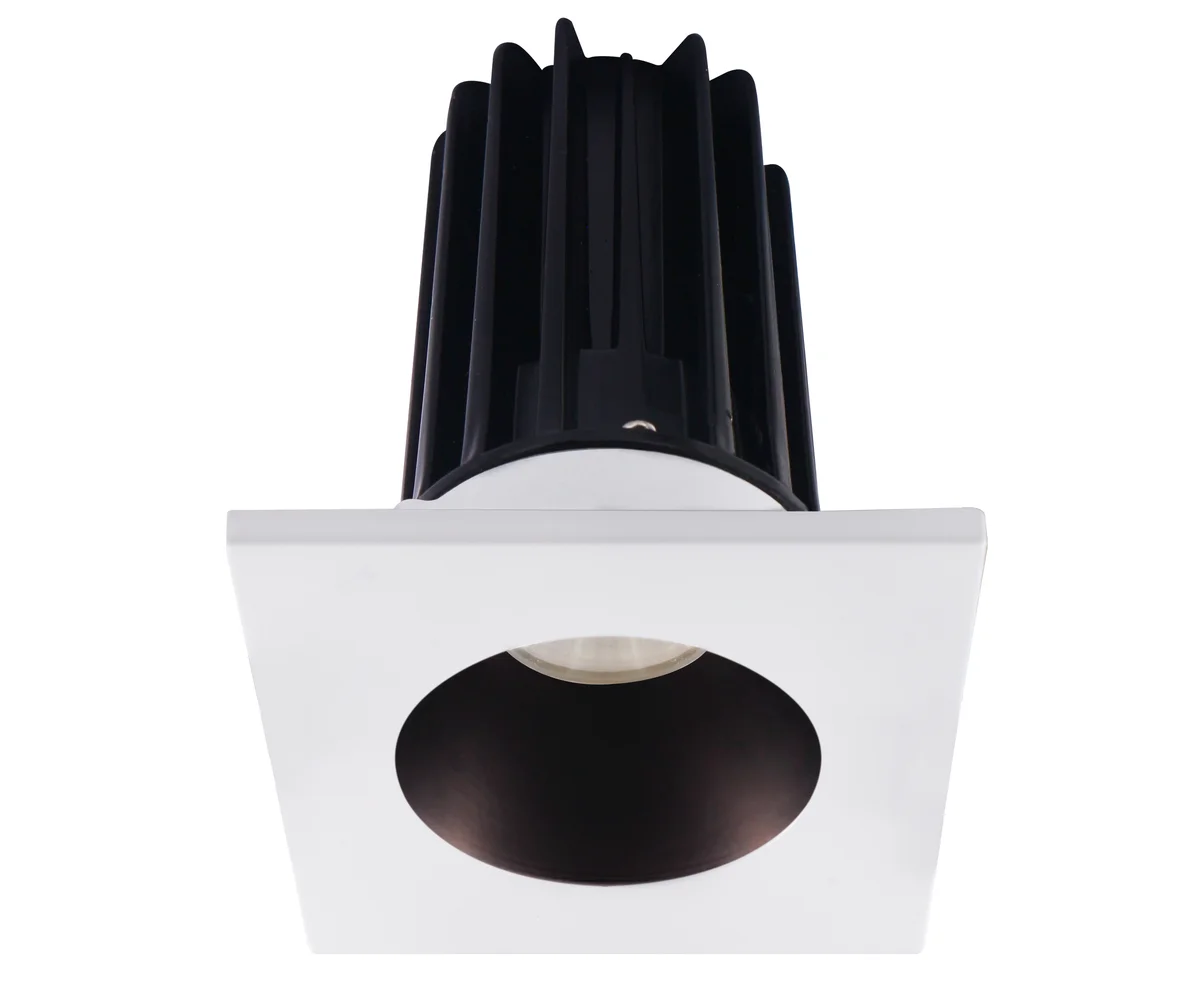

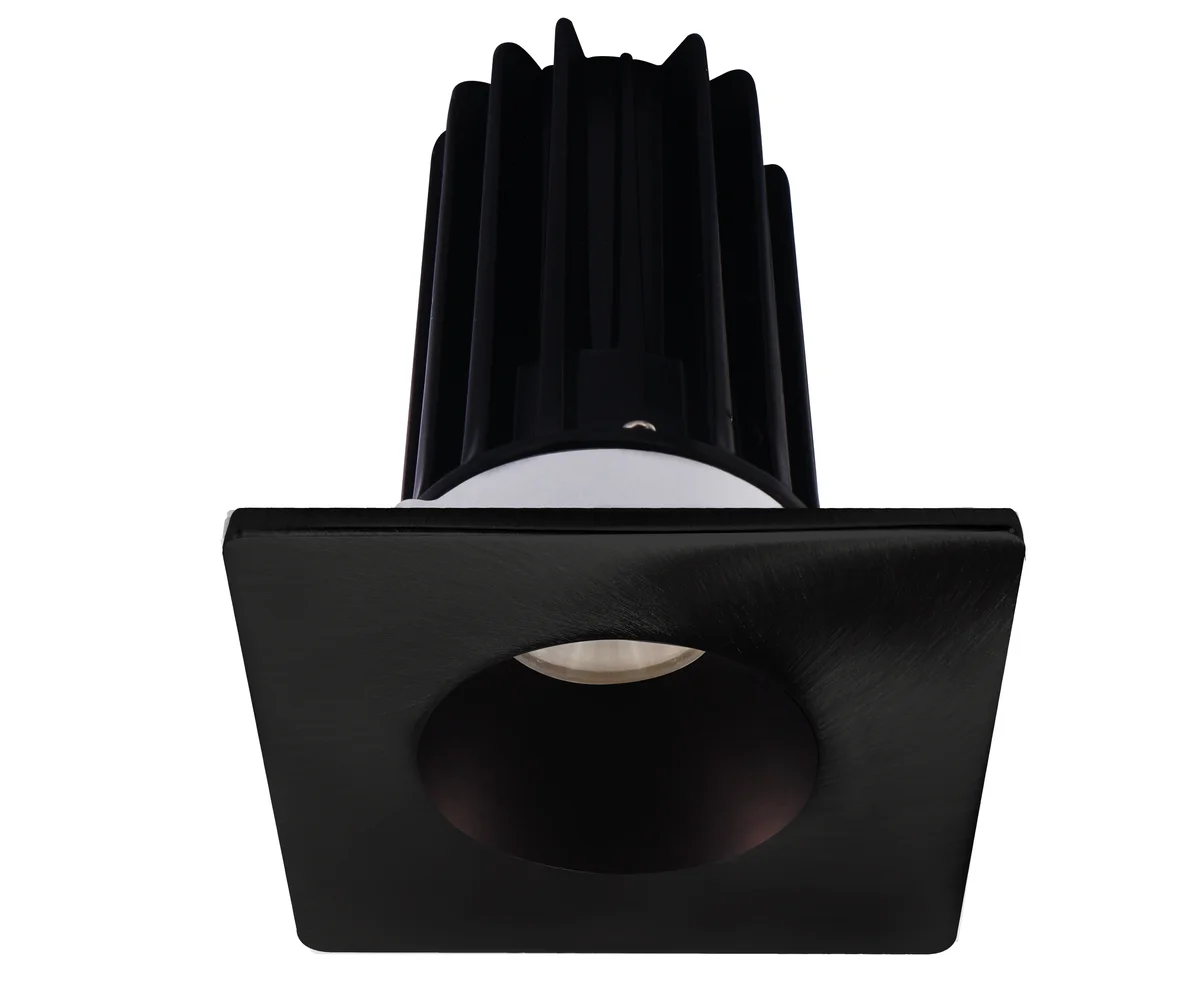

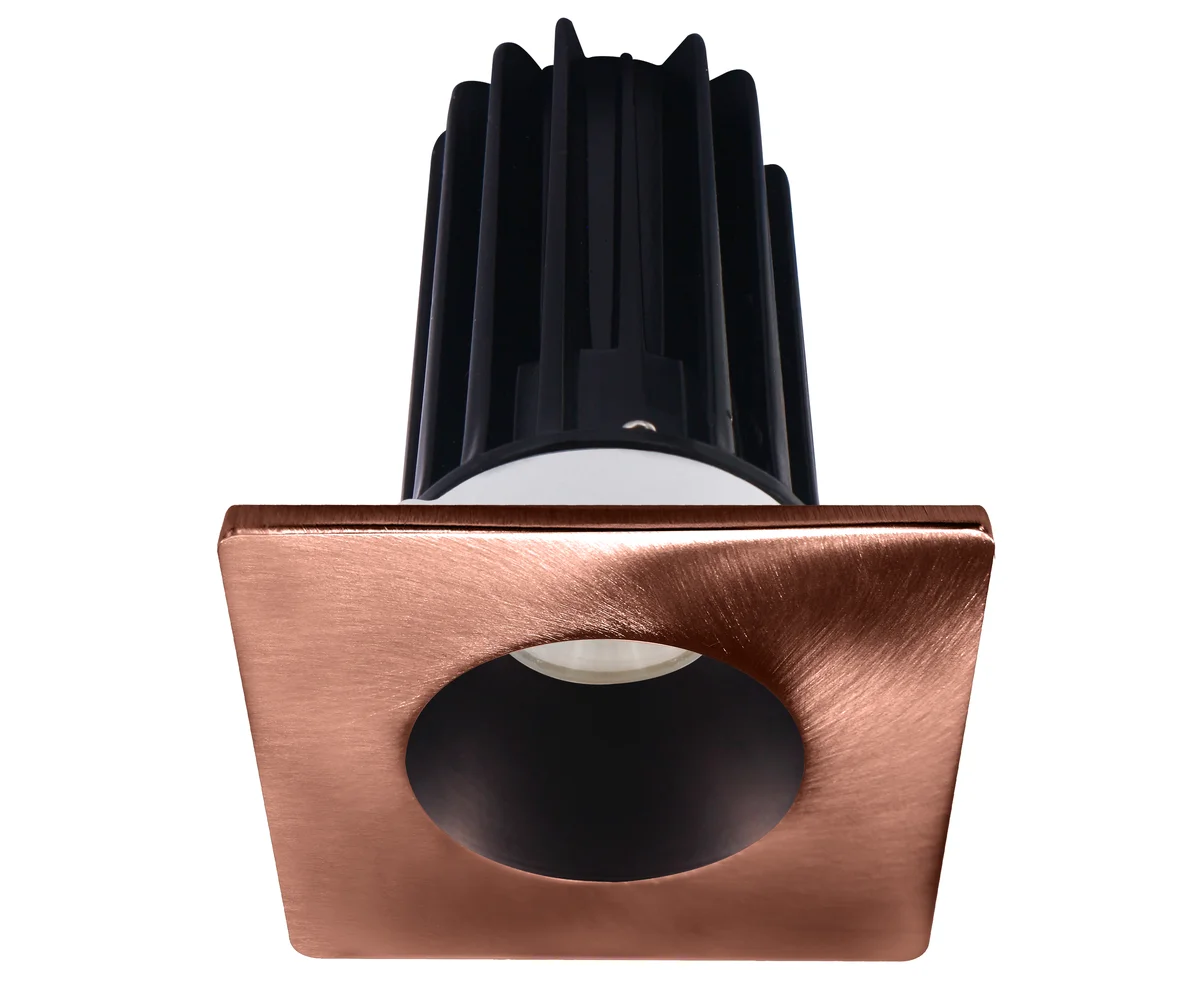

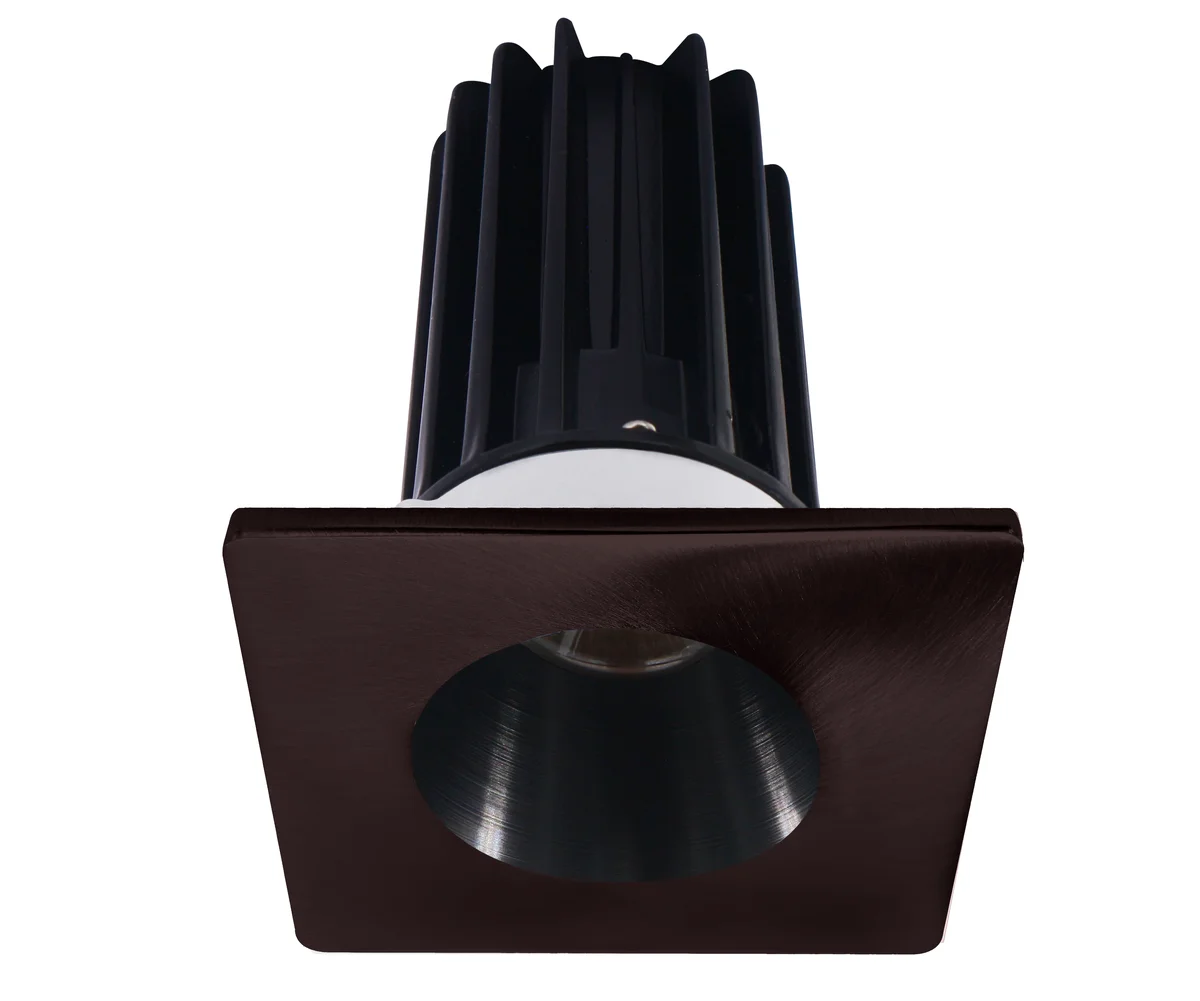

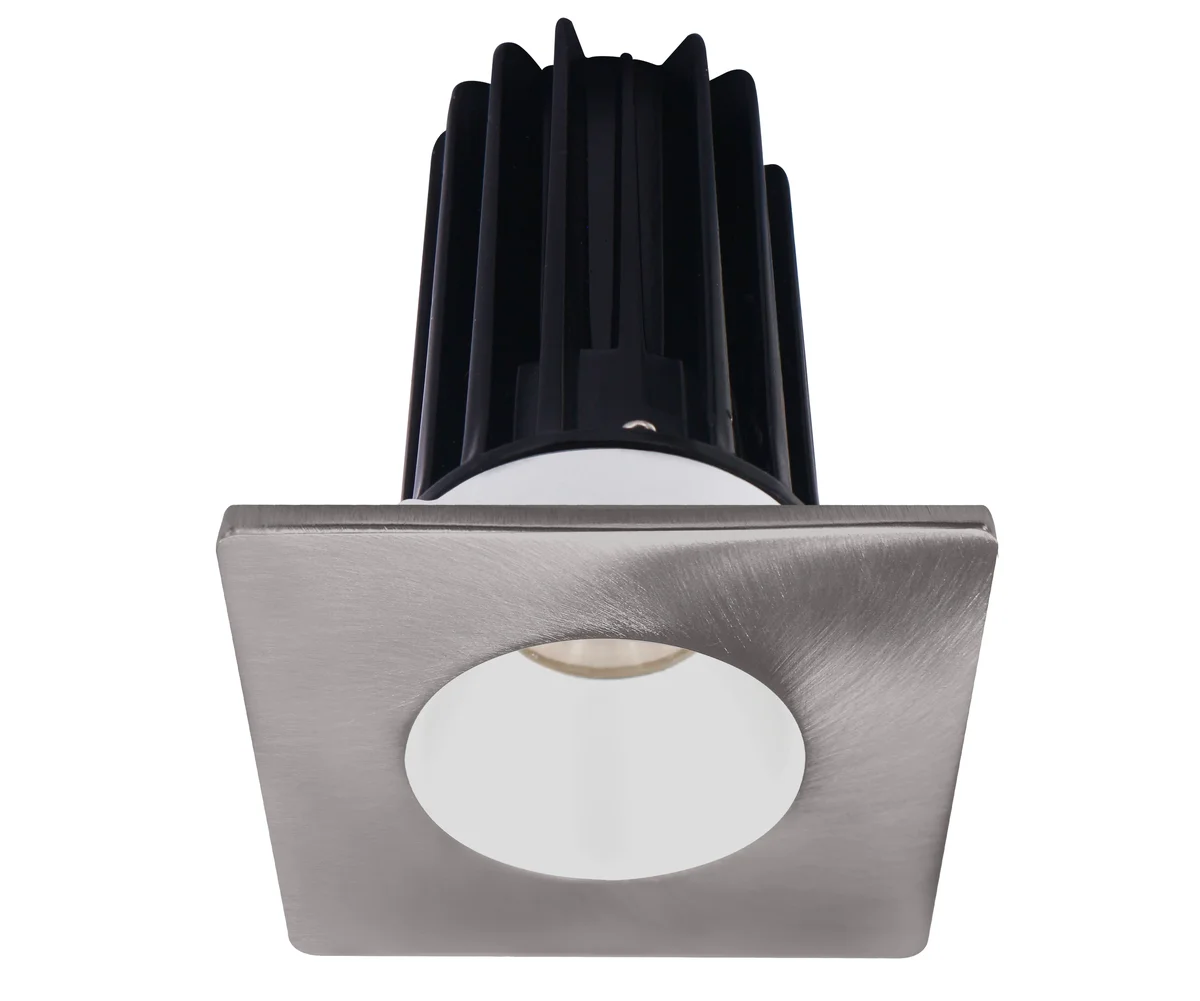

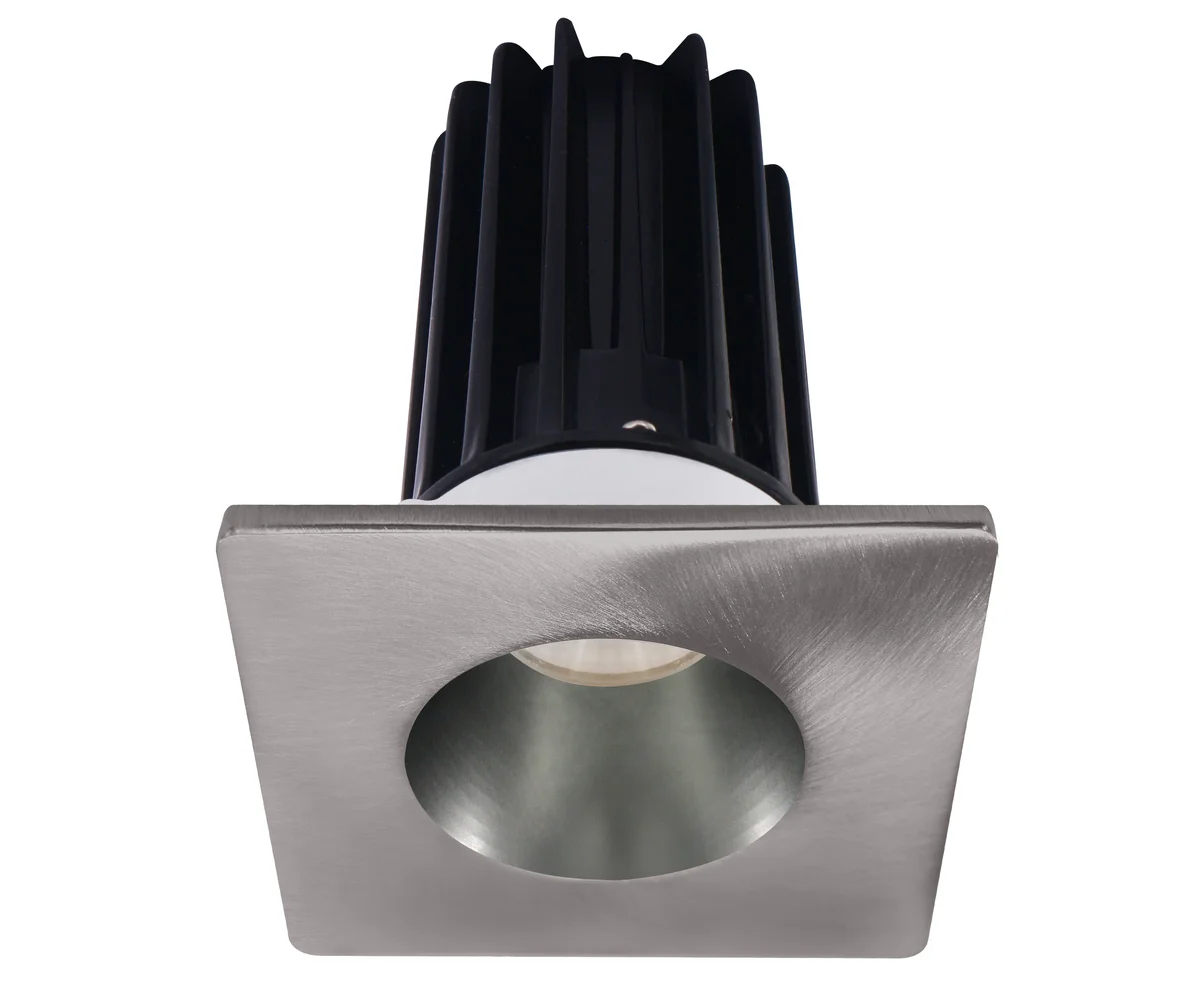

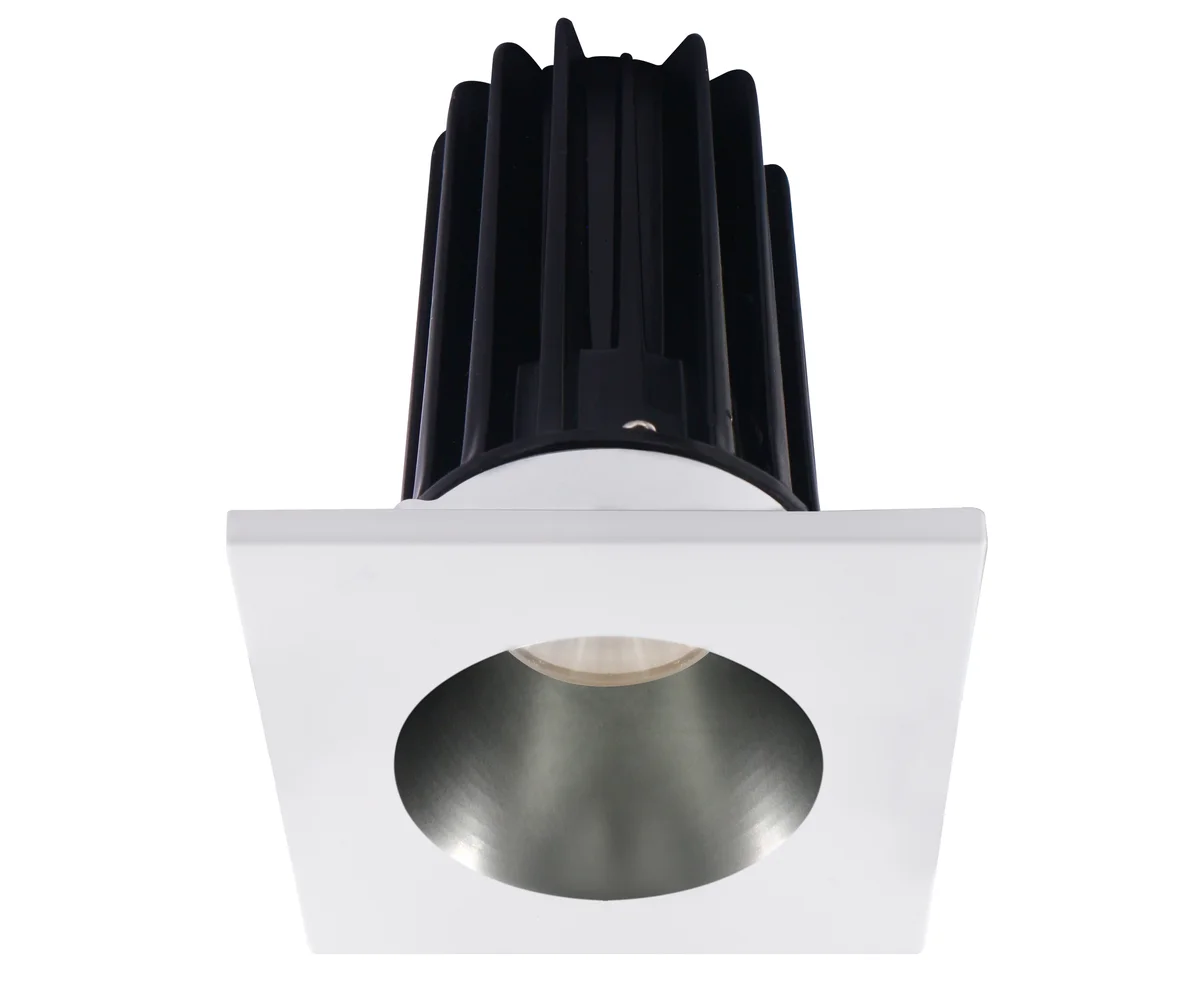

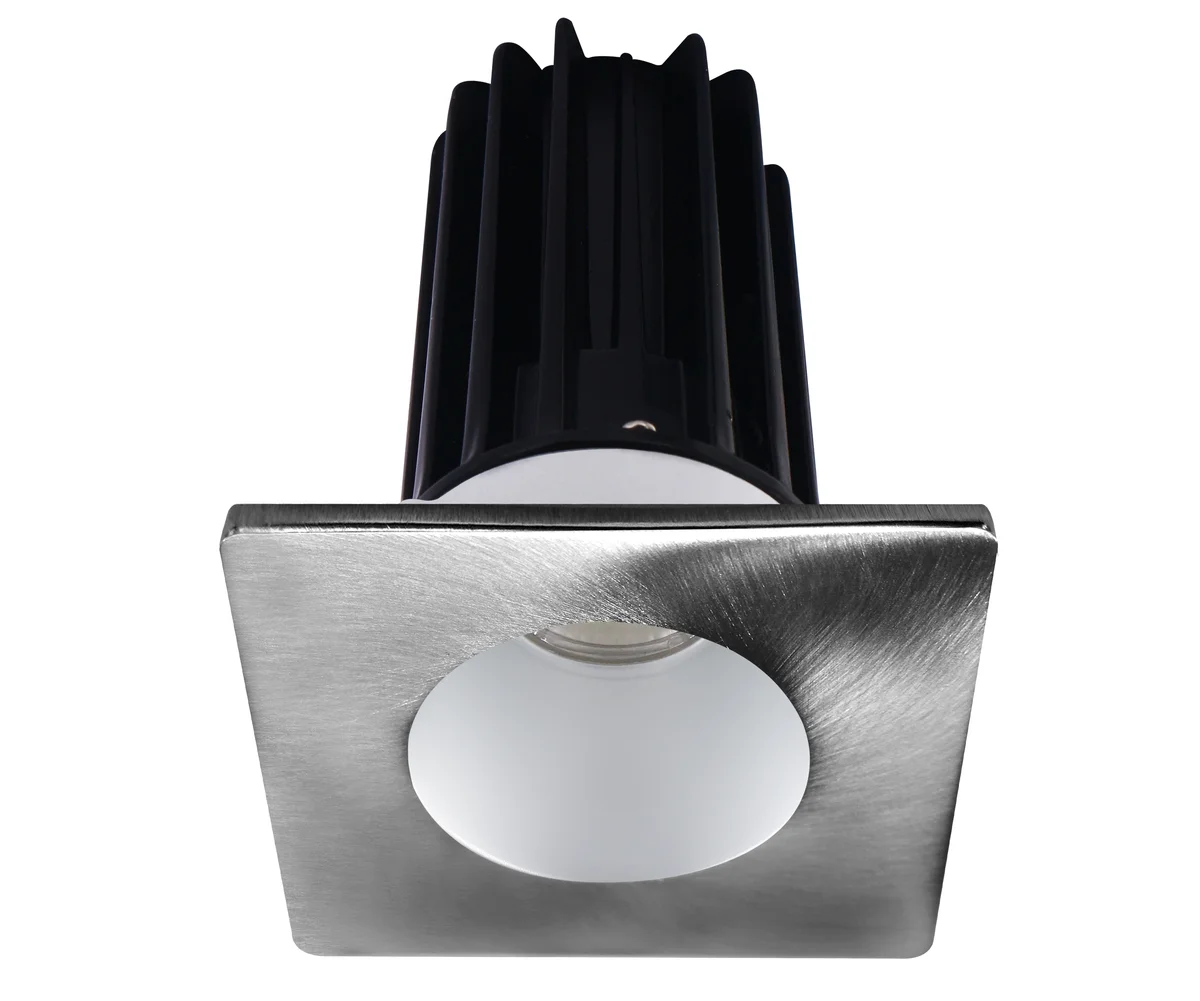

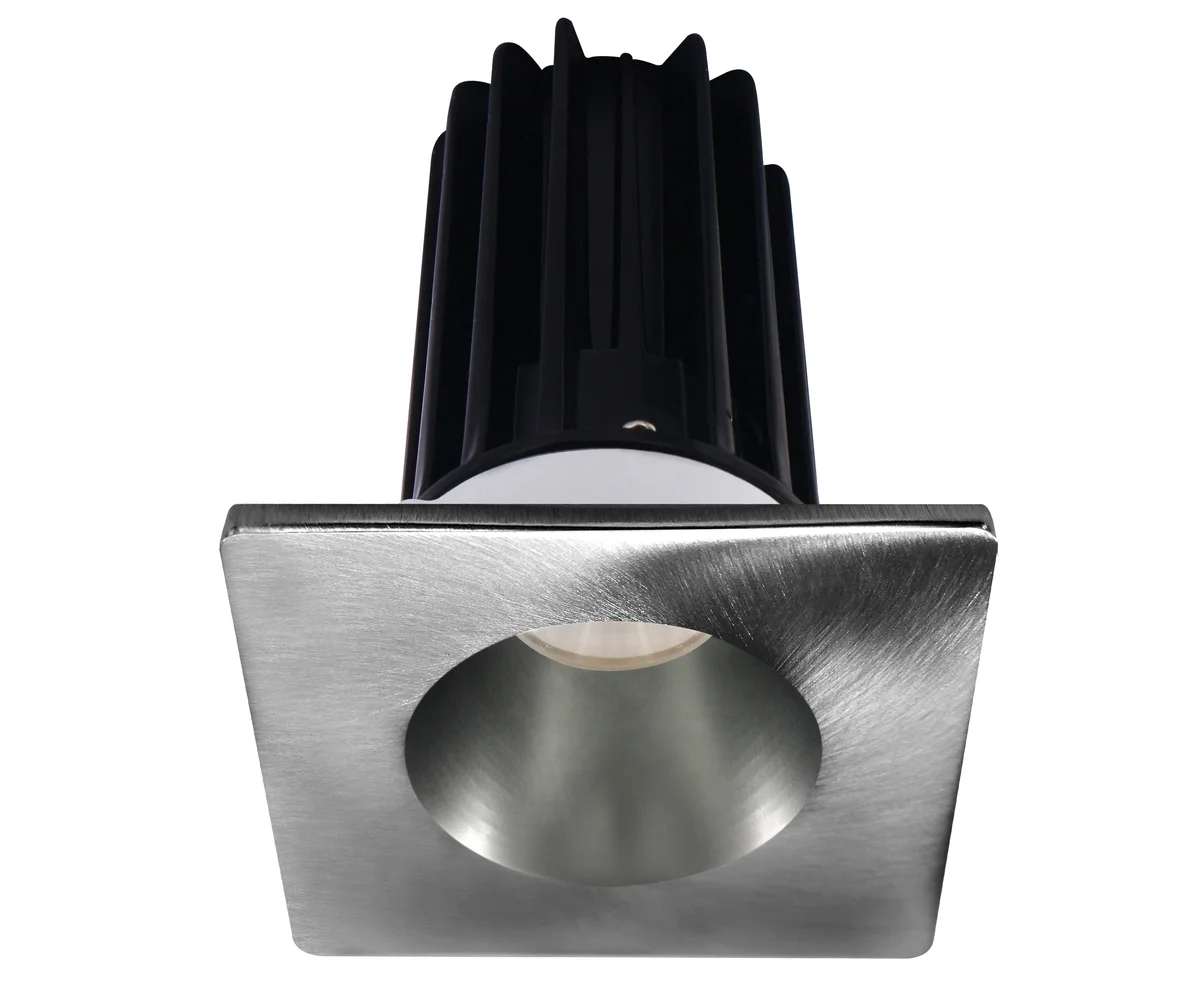

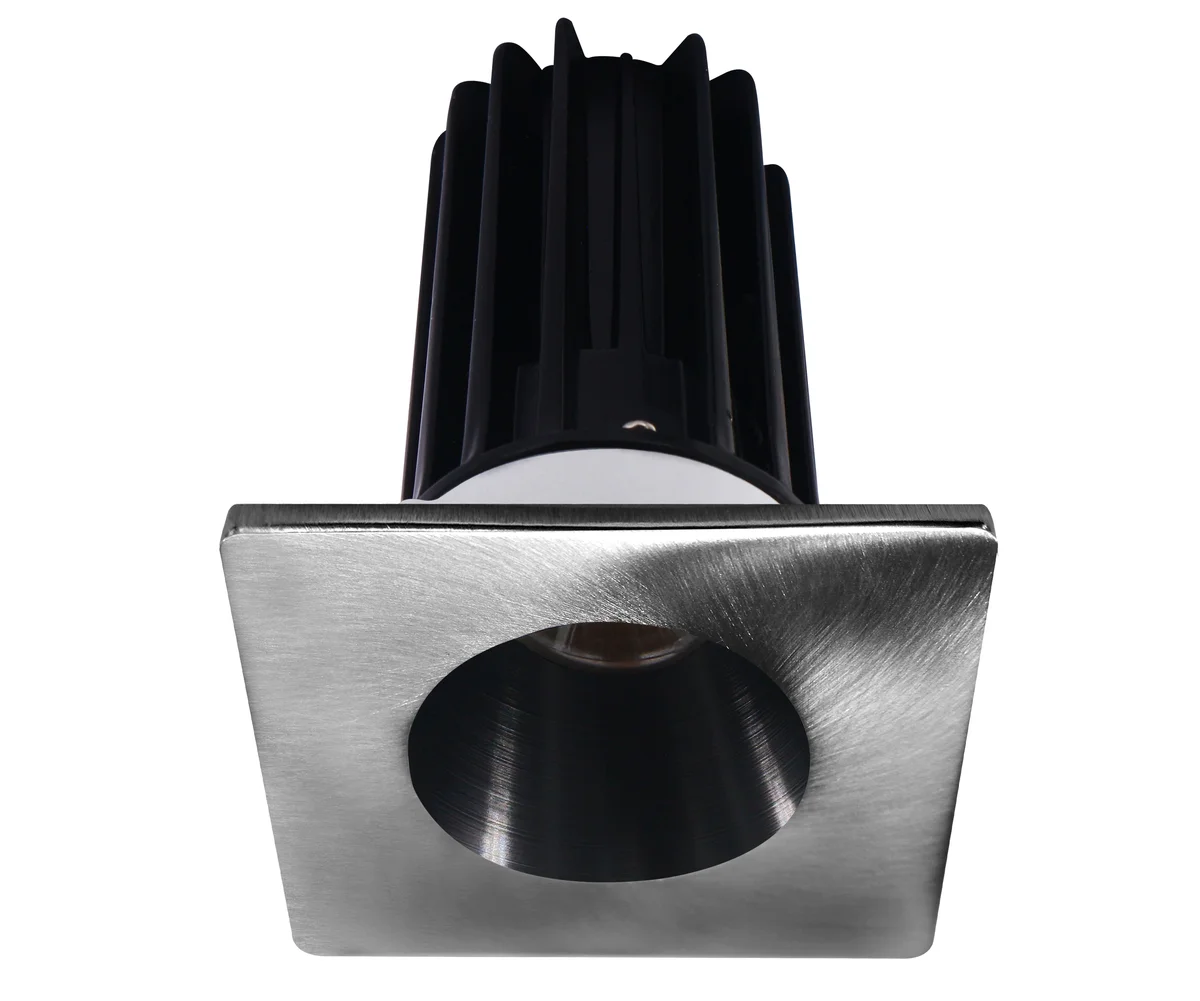

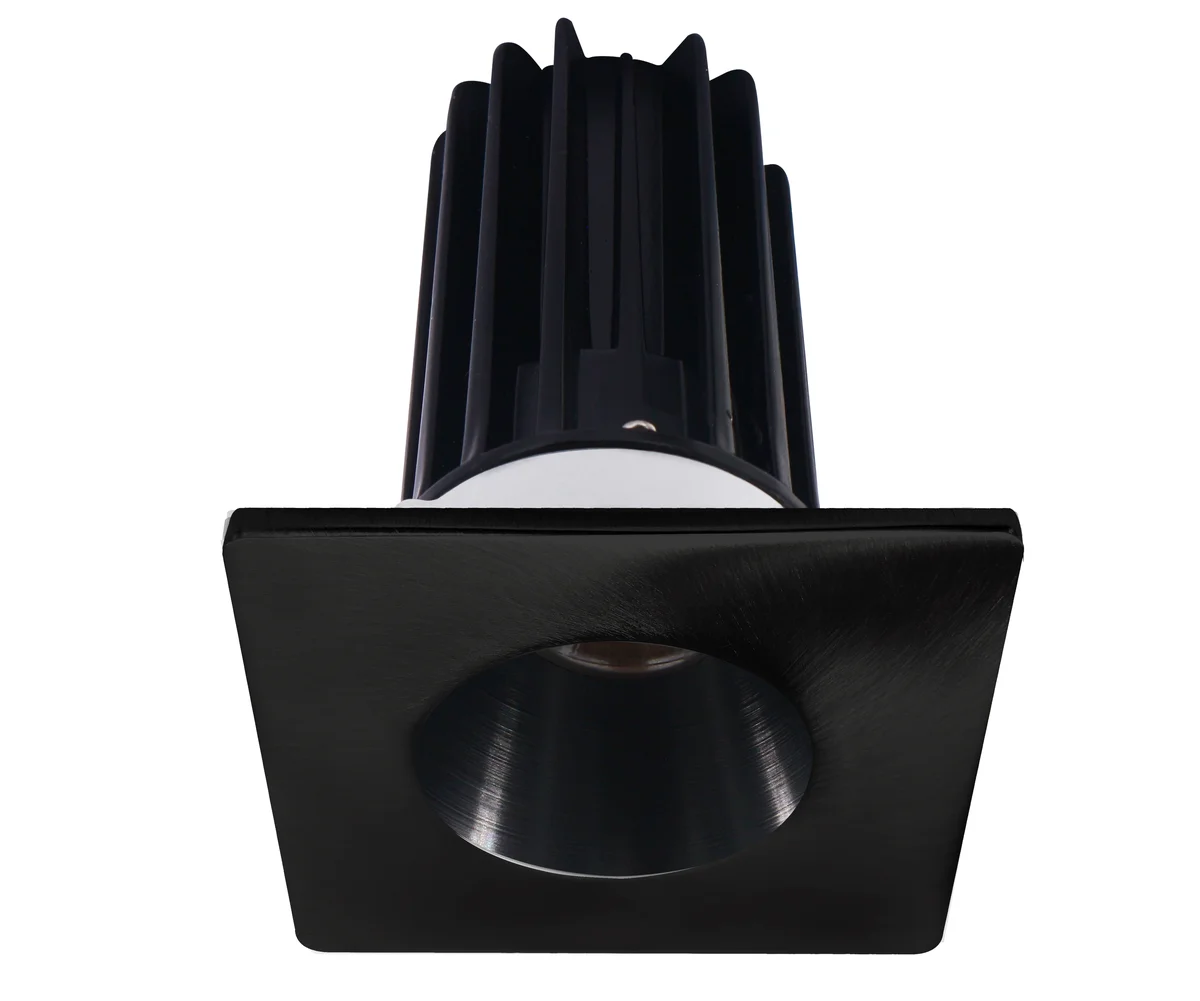

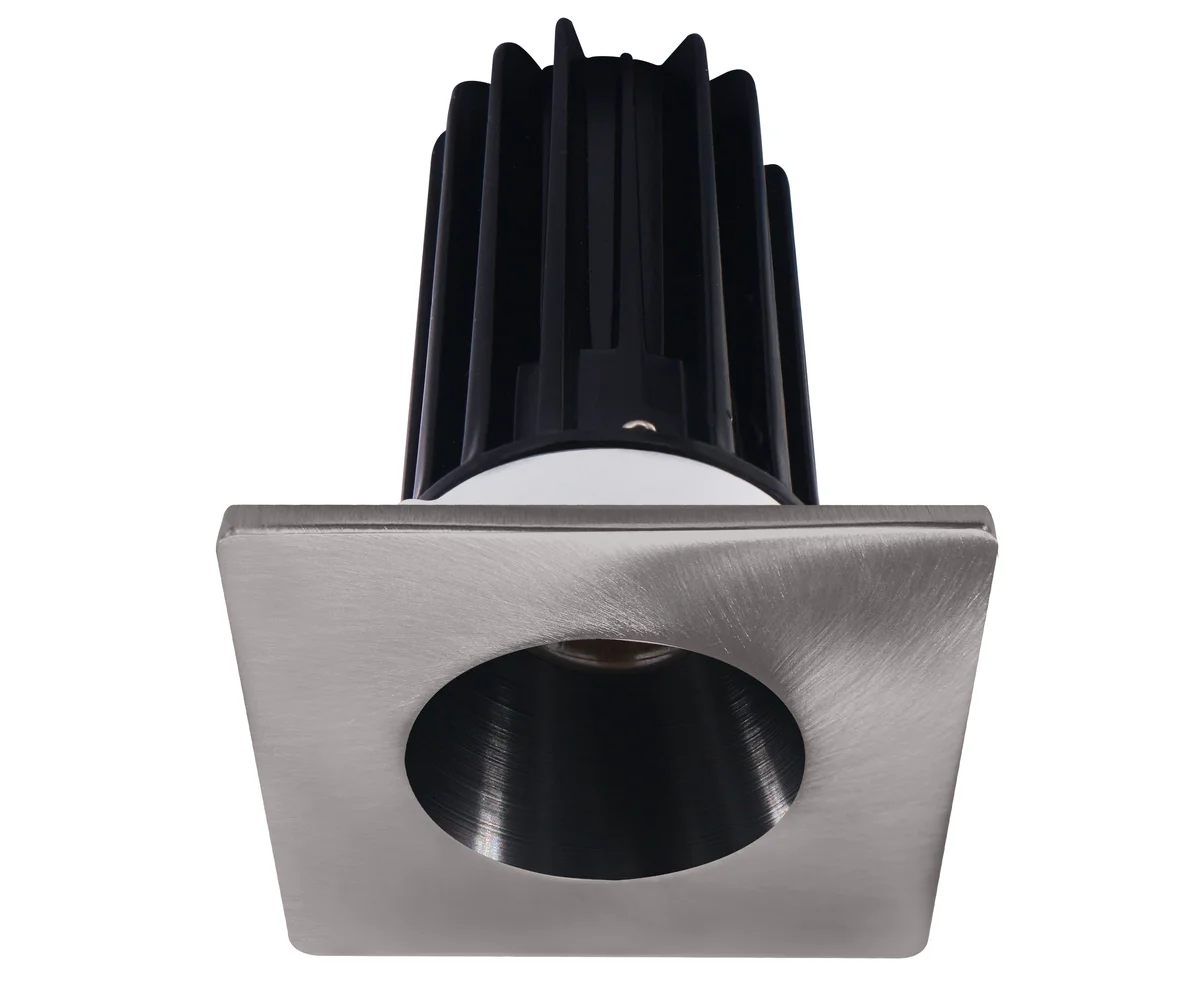

2″ Recessed LED, 8W, 2700K/3000K/4000K, Multiple Reflectors and Square Trims

CONSTRUCTION:
Square 2″ fixture with integral Driver in Connection Box.
One driver for every fixture required.

MOUNTING:
Cut hole in ceiling and snap fixture in opening with attached spring clips.
Ceiling Clearance Required: 4 1/2″

• Default Driver Input Voltage: 120V AC 50/60 Hz (Dimmable – TRIAC Dimmers 10%-100%)
• Energy Used: 8W
• Halogen equivalent: 50W
• Beam Angle: 38°(stock) or 24°(custom)
• Light color options: Warm White 2700K, Soft White 3000K, Neutral White 4000K
• Light output: Warm White 580 lm, Soft White 600 lm, Neutral White 620 lm
• Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)
• 5 Year Warranty
• Approved Locations: Insulated Ceilings & Damp Locations
• Rated: cETLus, Energy Star, T24

DIMENSIONS:

• ID 1 7/8″, OD 3 1/8″; Thickness 2 3/8″
• Cut out: 2 3/4″
• Junction Box Dimensions (with driver inside): 3 3/4” x 2 1/4” x 1 1/2”

Suitable for Insulated Ceiling & Damp Locations.
