Series GKOFDG11 Flood Lights are designed to provide superior performance and efficacy for exterior uplighting applications. Power & CCT Adjustment Controls are standard on all models, enabling the lighting professional to adjust light output to meet varied project requirements.
Key Features
CONSTRUCTION

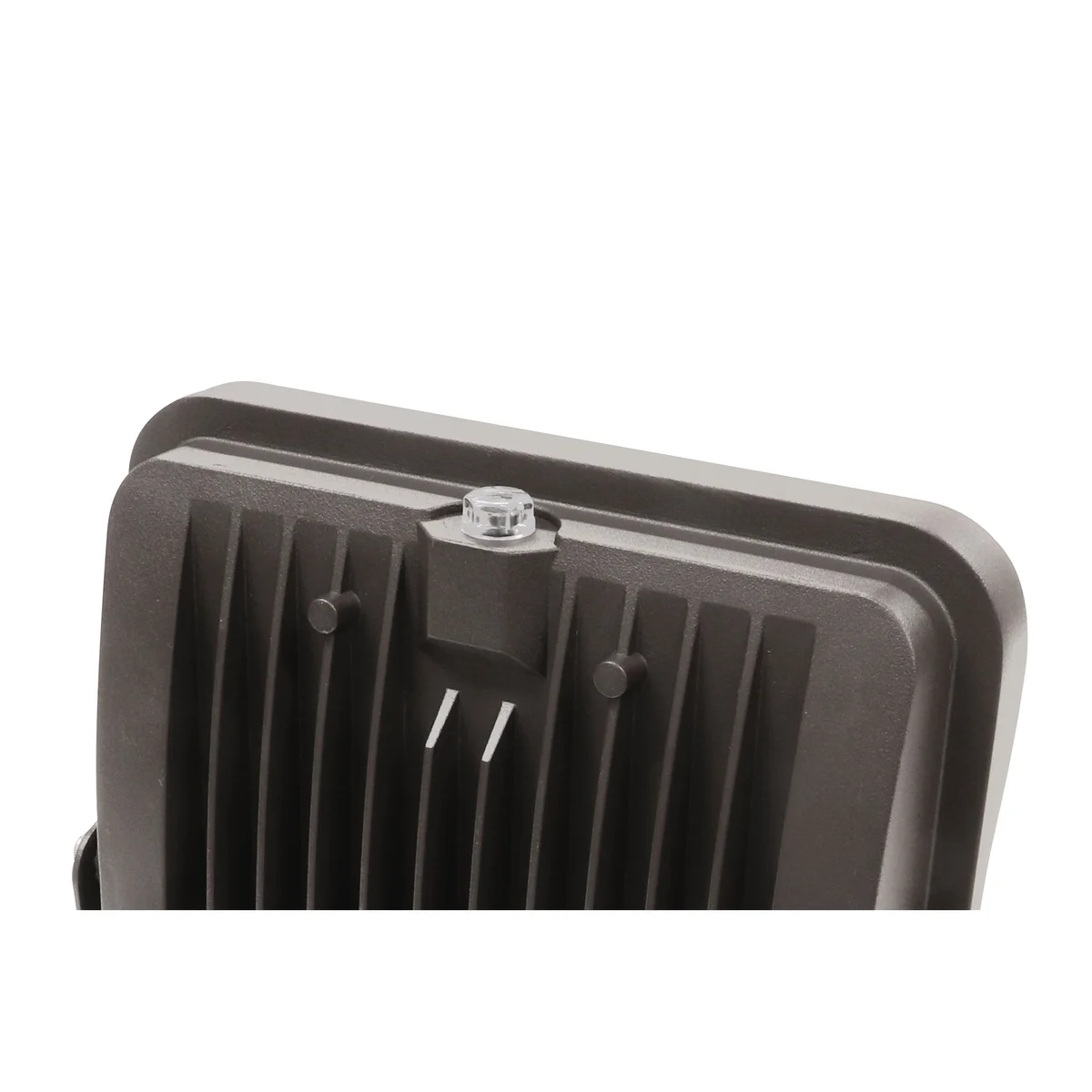

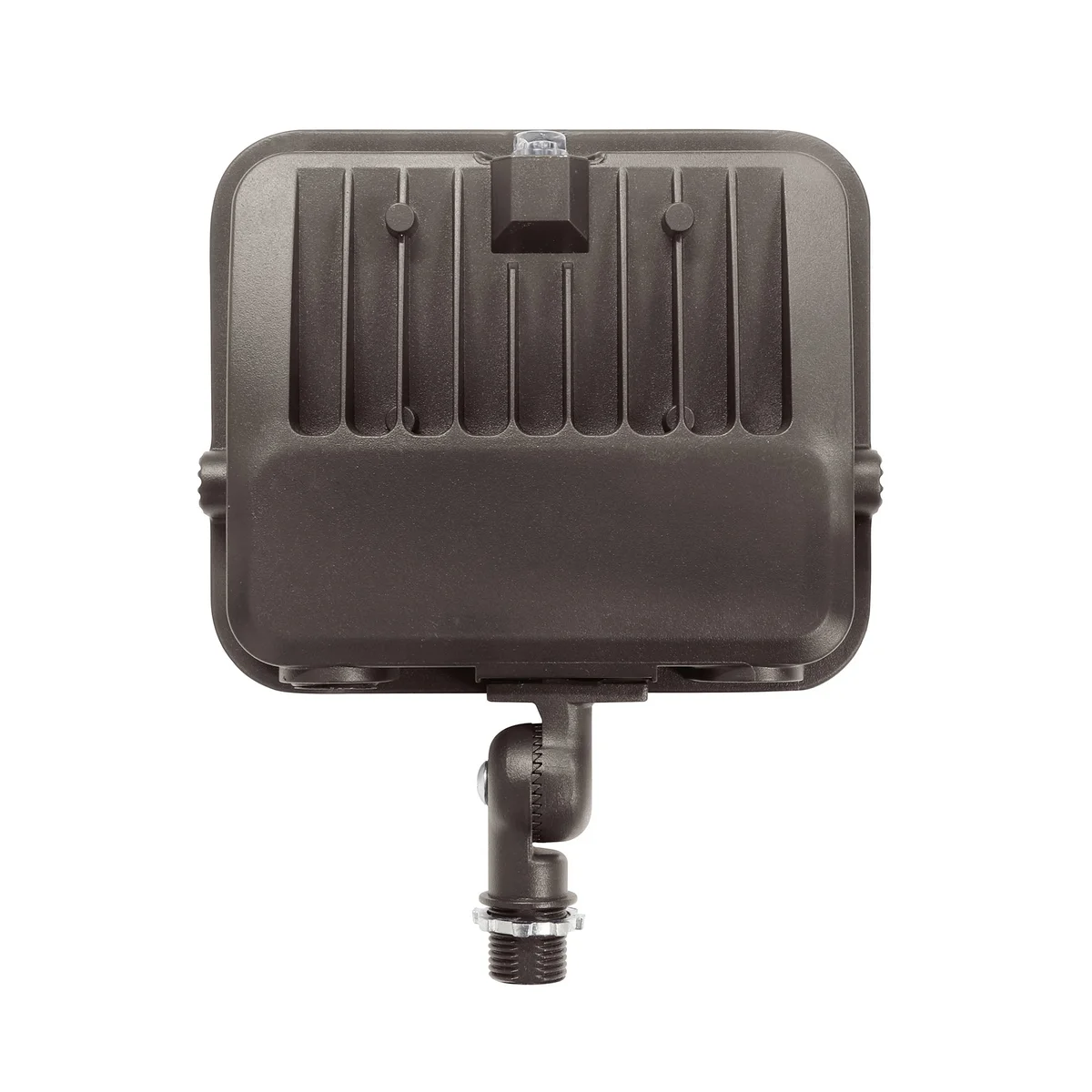

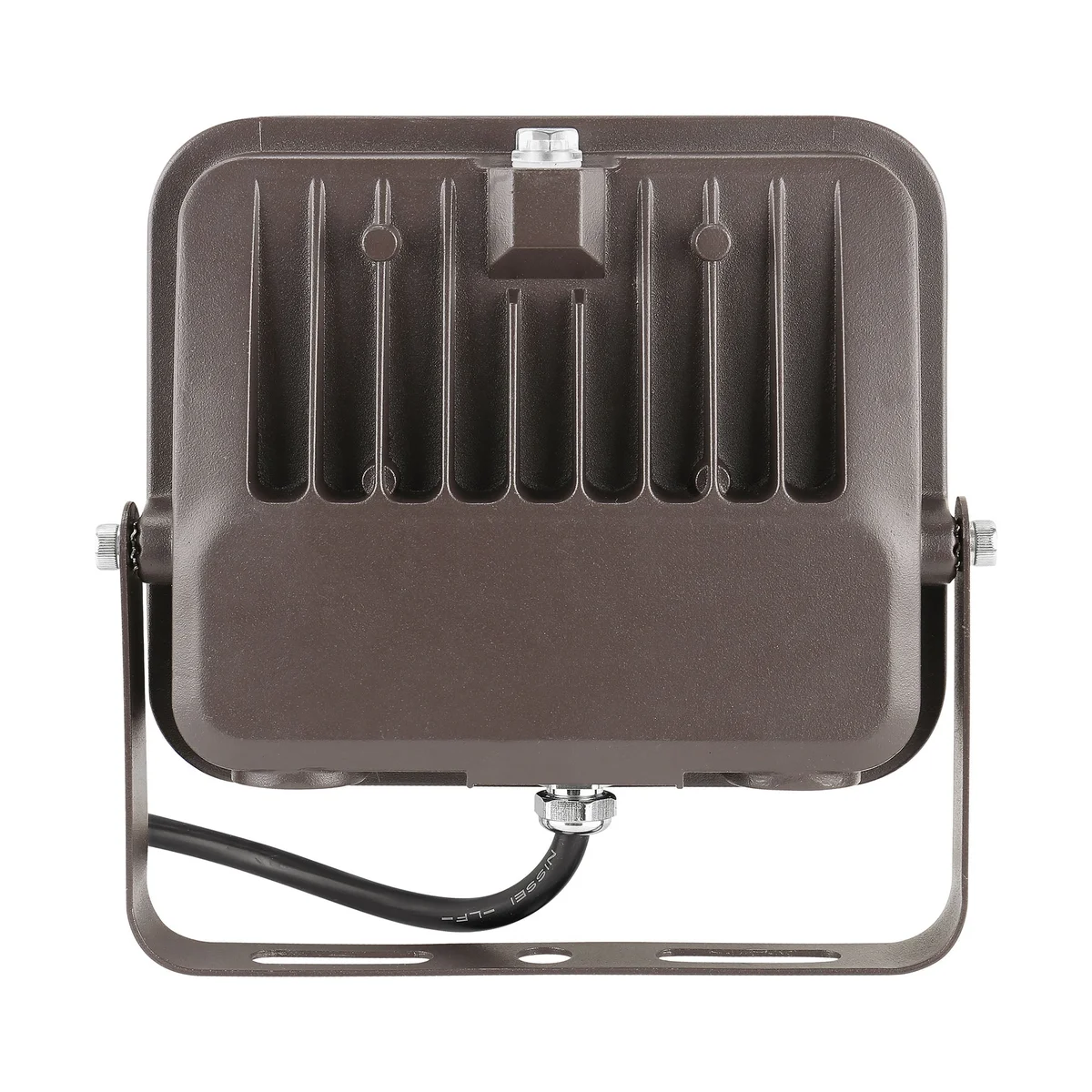

- Rugged single-piece die-cast aluminum housing with integral heat sink fins.
- Housing has direct contact with the driver to help maintain low temperature and long lifespan.
- Housing is completely sealed against moisture and environmental contaminants.
CONTROLS

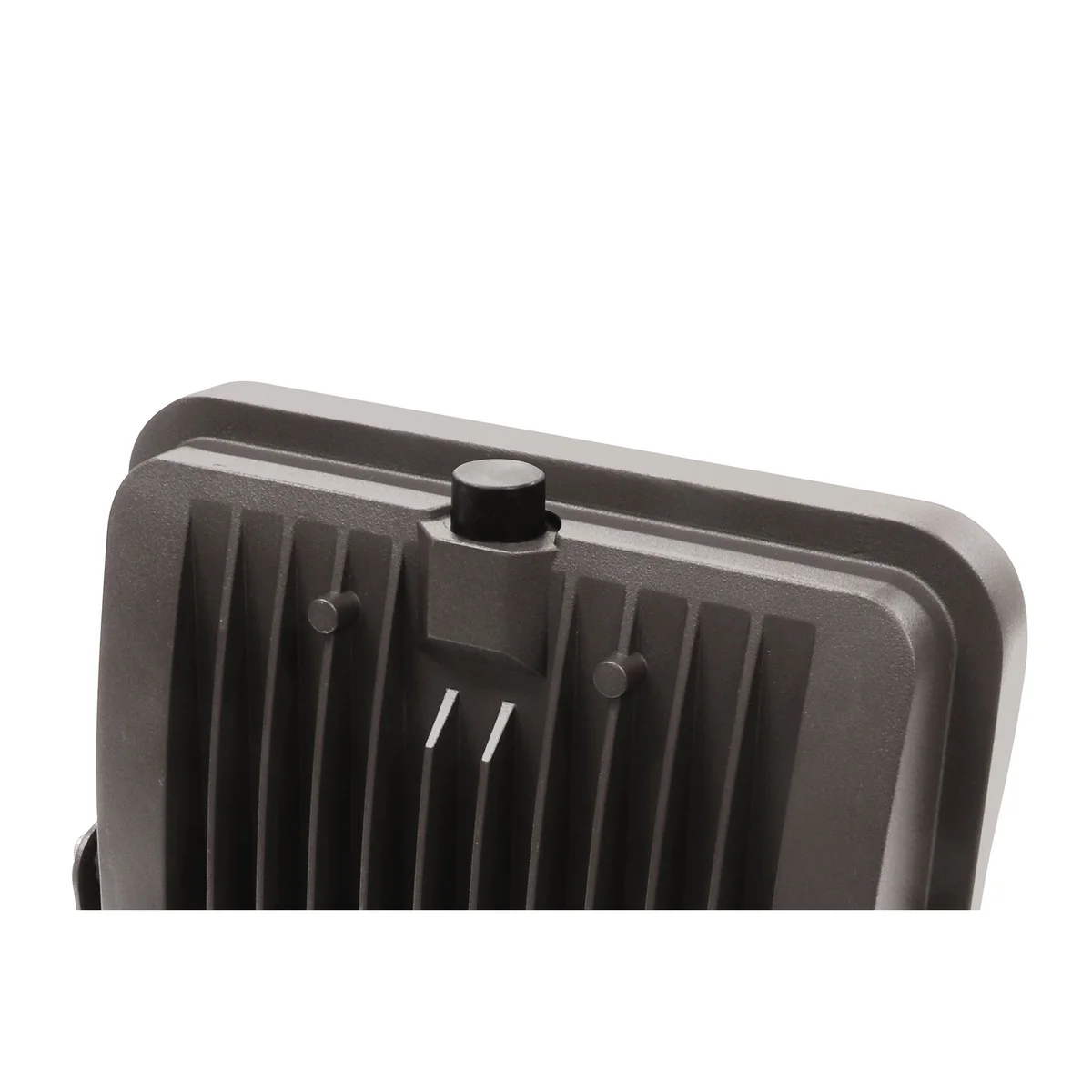

- Power & CCT adjustment controls protected by a threaded knockout.
- Optional button photocell for additional energy savings – P0 120-277V.
FINISH
- The exterior is protected by a rust-resistant powder coat finish that provides superior resistance to weathering and corrosion.
INSTALLATION

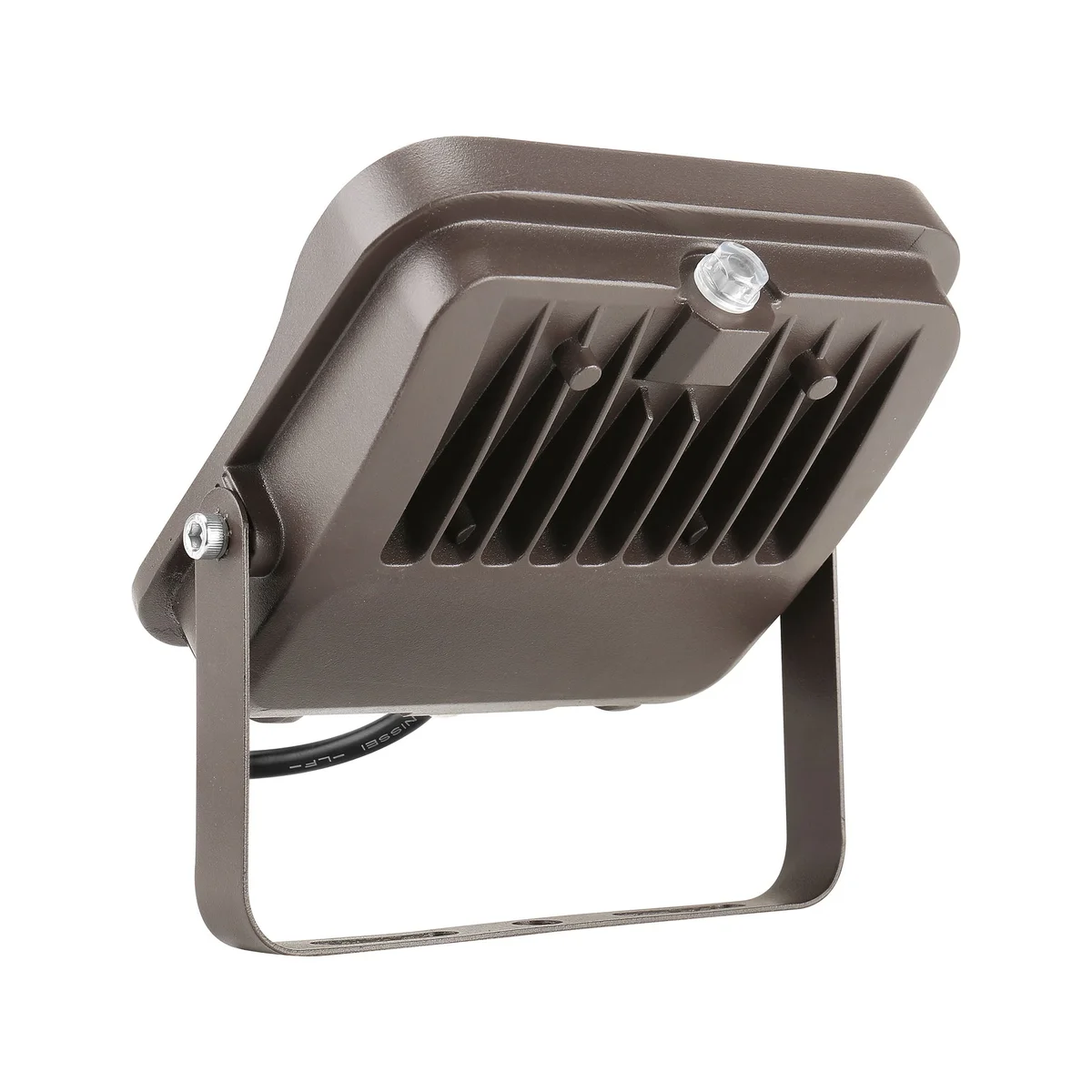

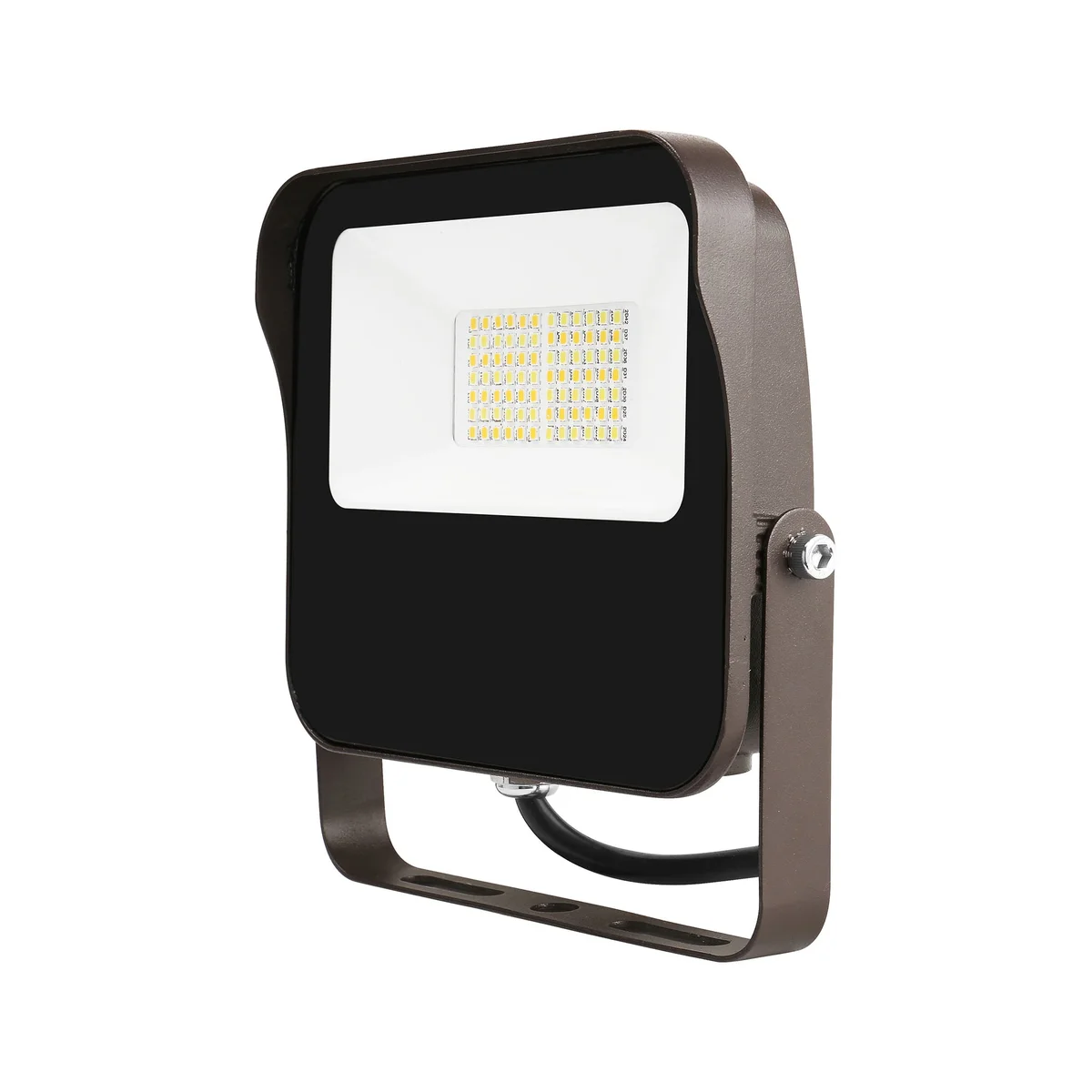

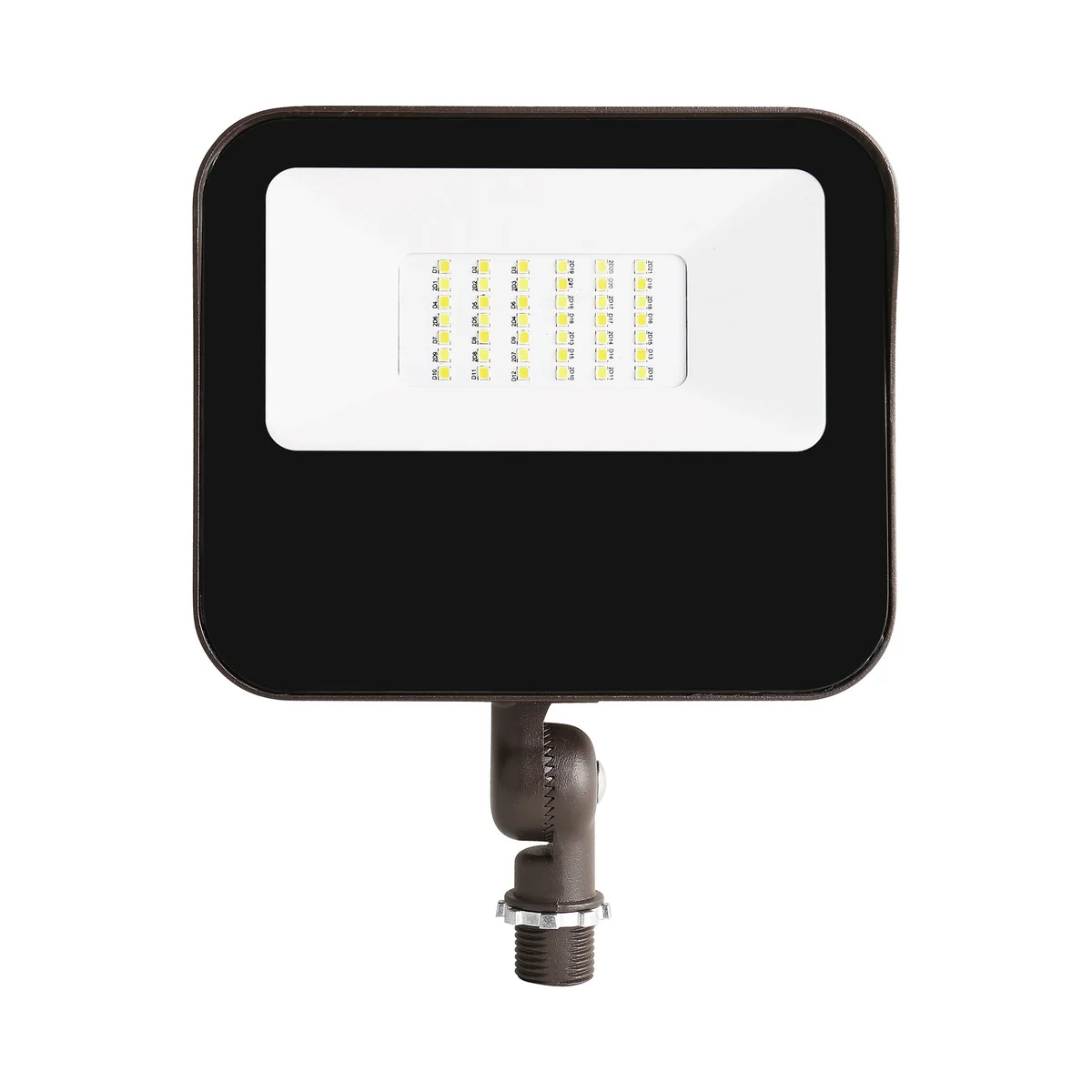

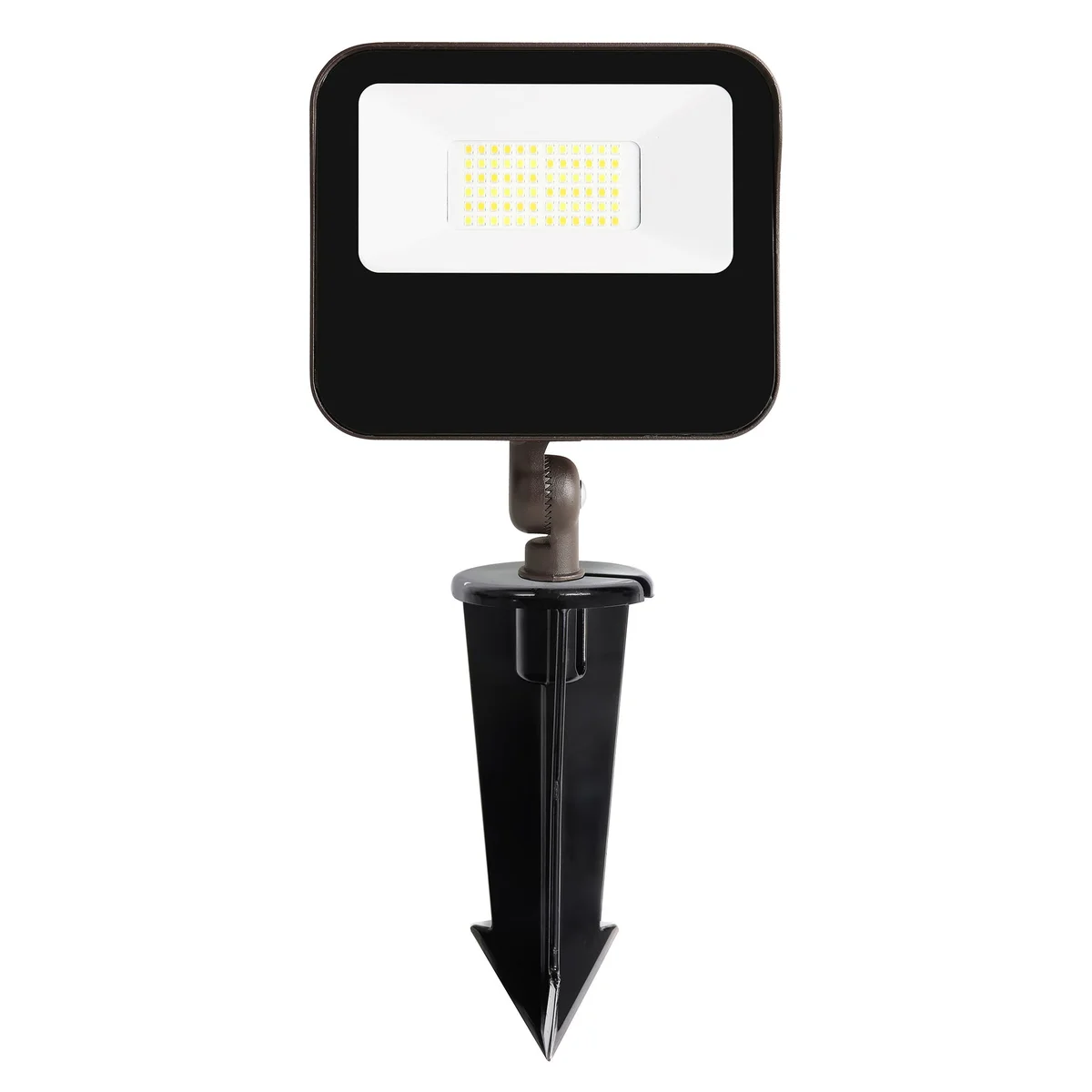

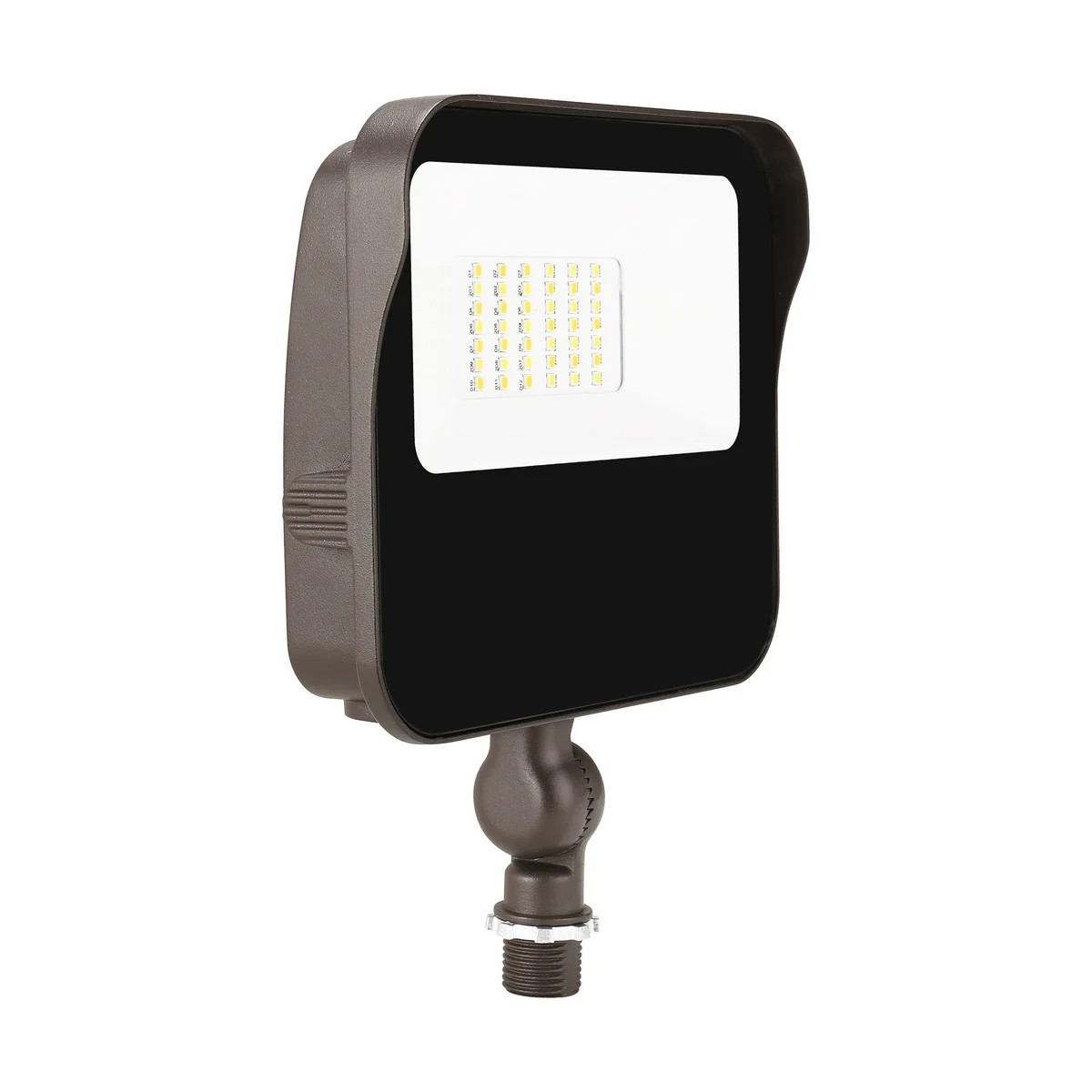

- Slipfitter, yoke, trunnion, and knuckle mount are available.
- Designed to be suitable for installation by only one person.
WARRANTY
- 5 Year Limited Warranty.
LISTINGS
- DesignLights Consortium® (DLC) Premium qualified.
- UL listed for wet locations.
- Rated for ambient operating temperature -40ËšF to 104ËšF (-40ËšC to 40ËšC).
OPTICS

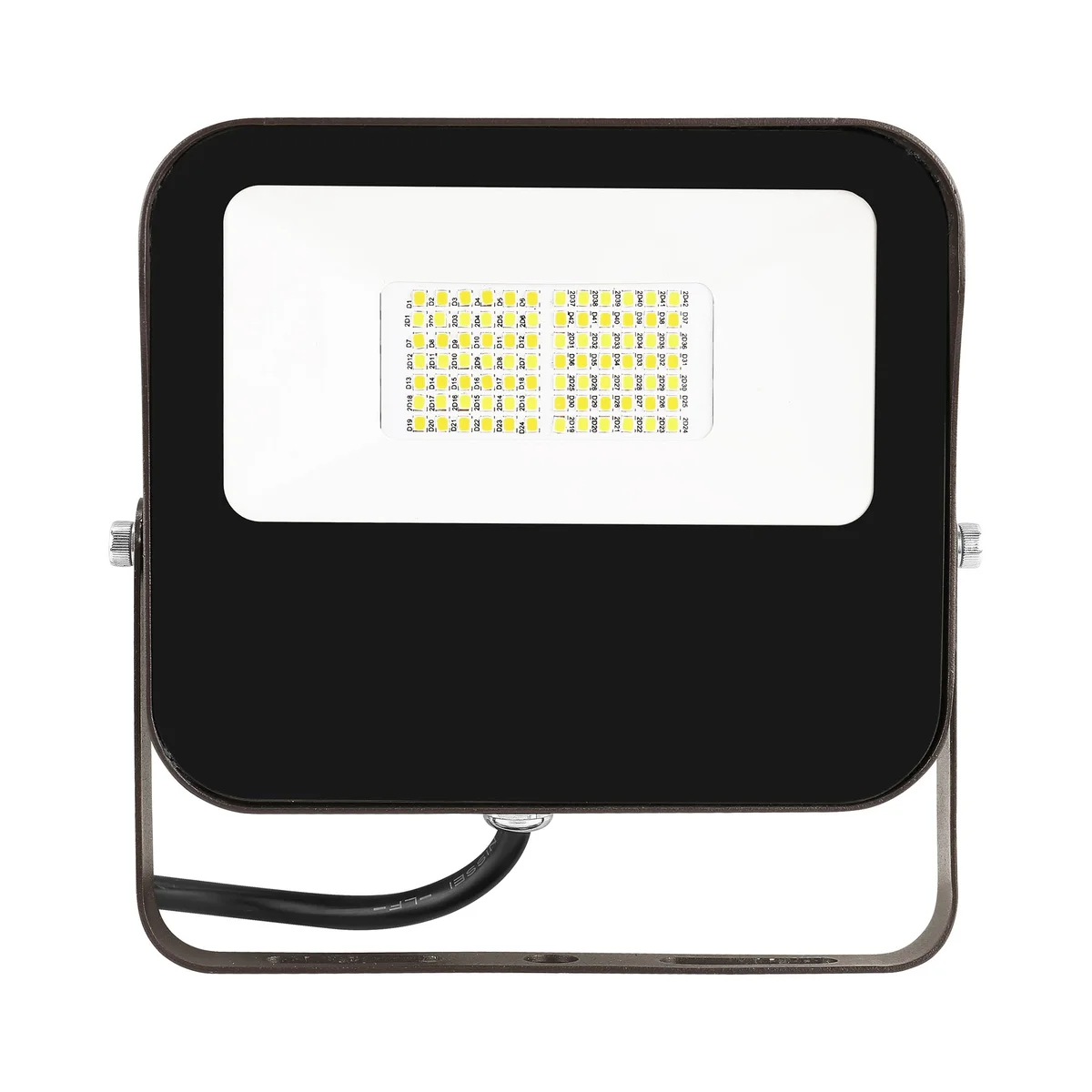

- NEMA 7H*7V light distribution created by the integrated white reflector.
- Light engines are available in 3000K, 4000K and 5000K configurations.
- A wide range of lumen options available, from 2,100 to 18,000 Lumens, replaces up to 400W metal halide.
- Heat and impact-resistant tempered glass lens.
ELECTRICAL
- Universal 120-277V input voltage.
- 2KV surge protection for 120-277V.
- 1-10V dimming driver(s) as default.
- THD: ≤20%, Power Factor: ≥90%.
| Weight | 1.77 lbs |
|---|---|
| Brand | GKOLED |
| Wattage | 21 – 30 W |
| Lumens | 2001 – 4000 |
| Color Temperature (CCT) | 3000K, 4000K, 5000K |
| Voltage | 120 V, 130 V, 200 V, 208 V, 210 V, 220 V, 230 V, 240 V, 265 V, 277 V |
| CRI | 61 – 70 |
| Certifications | DLC Premium, UL Listed |
| Warranty | 5 Years |
