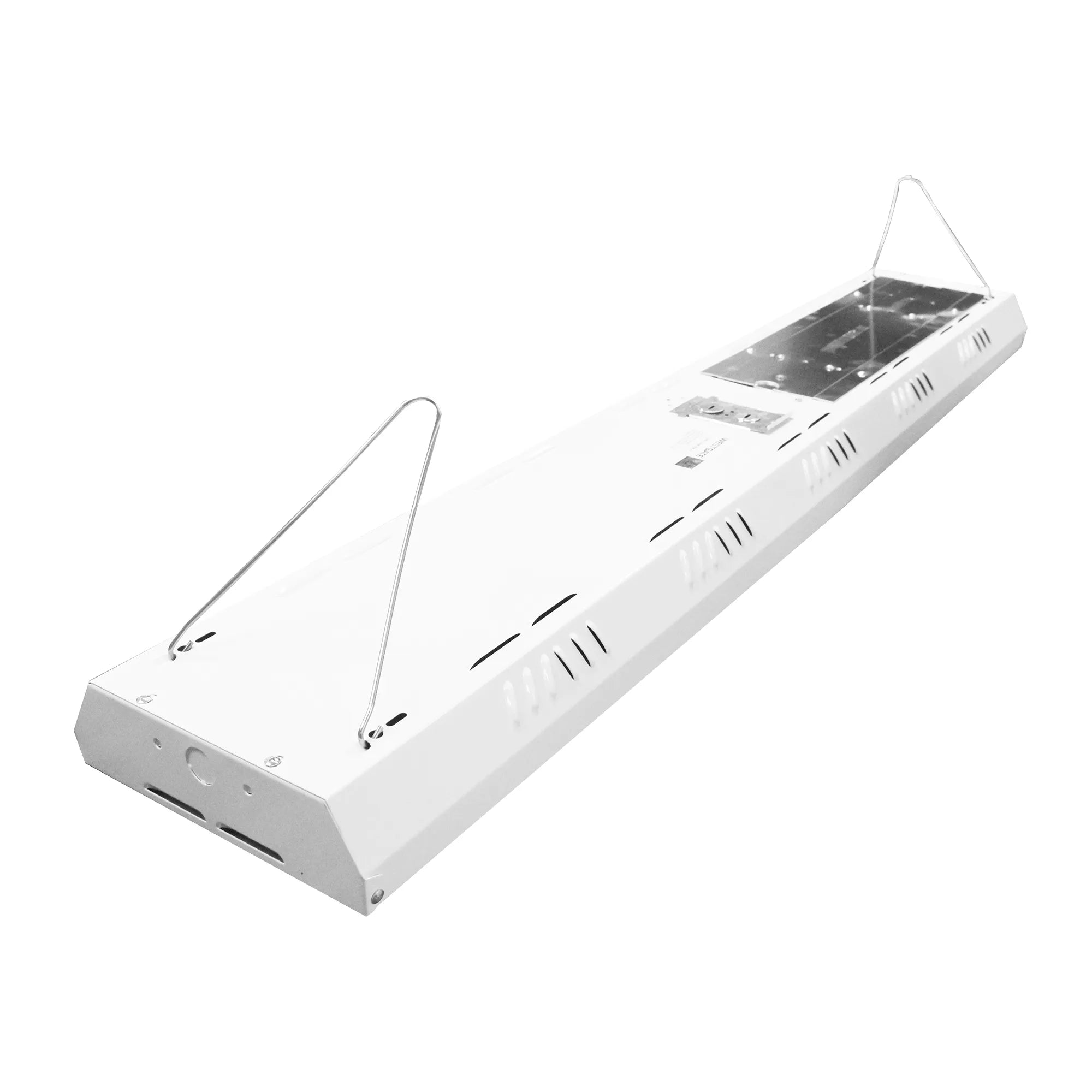

Westgate Manufacturing’s LED Linear High Bay delivers flexible, high-performance illumination for demanding commercial spaces. Select your ideal wattage (90W, 135W, or 180W) and color temperature (4000K or 5000K) to match your facility’s requirements. With output up to 24,300 lumens, superior CRI >80 color rendering, and 0~10V dimming capability, this fixture adapts to evolving lighting needs. Built for durability with a 50,000-hour rated life, UL listing for damp locations, and wide voltage compatibility (120-277V), it performs reliably across extreme temperatures from -4°F to 131°F. Backed by a 5-year warranty, this professional-grade solution reduces energy costs while maintaining exceptional light quality.

Weight 3.81 lbs
Brand

Westgate Manufacturing

Wattage

101 – 150 W, 151 – 200 W, 81 – 90 W, Selectable

Lumens

12001 – 14000, 16001 – 18000, 18001 – 20000, 24001 – 26000, Selectable

Color Temperature (CCT)

4000K, 5000K, Selectable

Voltage

120 V, 208 V, 240 V, 277 V

CRI

71 – 80

Certifications

Damp Location, UL Listed

Warranty

5 Years
