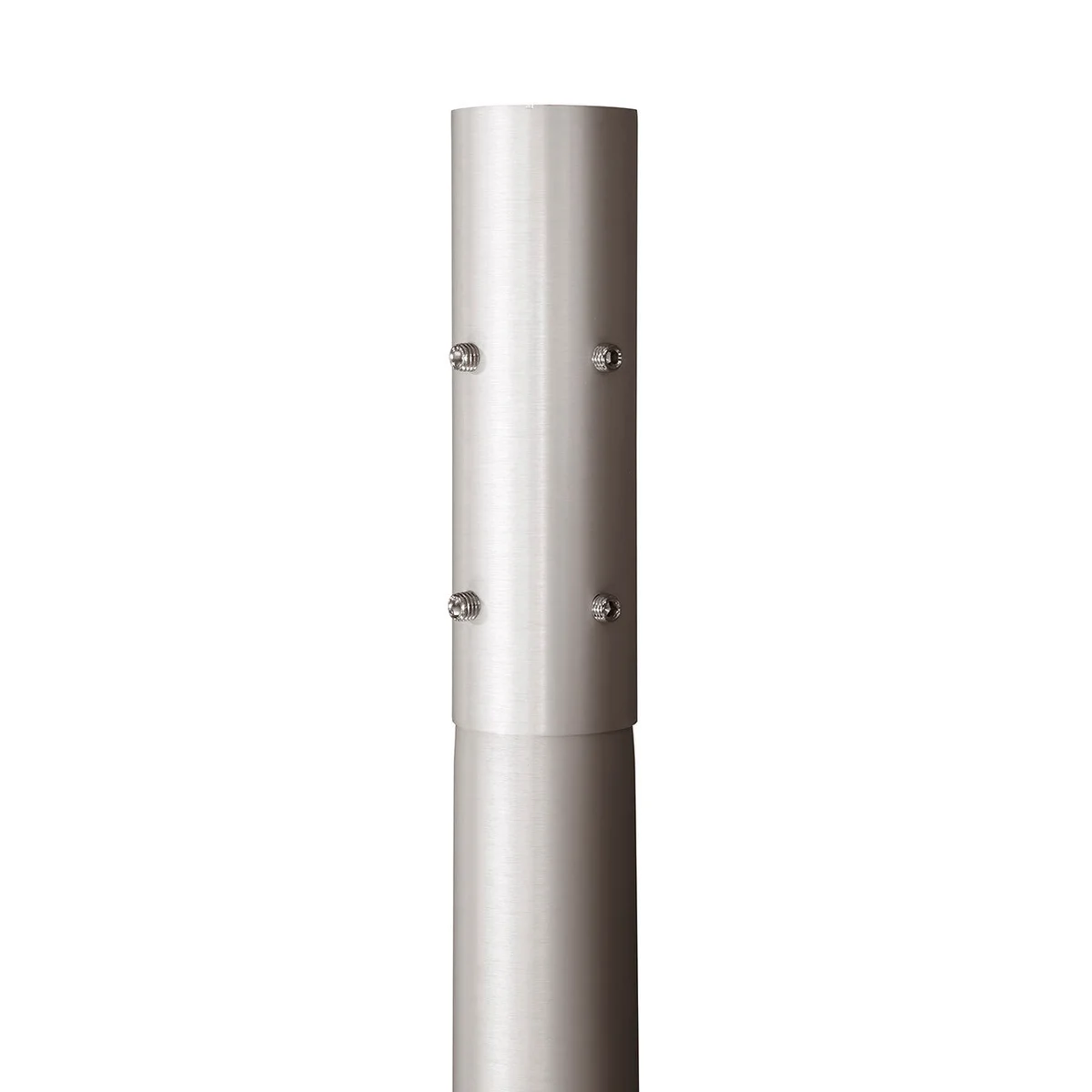

Pole Top: 2 3/8″ tenon is standard. 3″ tenon or top cap options are available.
Pole Shaft: 25 ft. height above ground, Tapered aluminum shaft with 0.138″ wall thickness. The pole shaft is constructed of seamless extruded tube of 6060 Series Aluminum Alloy.
Handhole: 3.35″ X 15.75″ handhole is located 23.6 inches above ground. Handhole cover with 2 Tamper-Resistant Screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.
Embedment: Embedment length is 5.2 ft. Two wire accesses 180° apart are provided 23.6″ below ground line.
Color: Dark Natural Aluminum.
Warranty: 10 Years.
Foundation design:Â Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
| Weight | 90.00 lbs |
|---|---|
| Brand | Stasy's Art 2.0 Select |
| Warranty | 10 Years. |
