Quick Ship – 30 Foot Round Tapered Anchor Based Aluminum Light Pole, Dark Natural Aluminum Finish

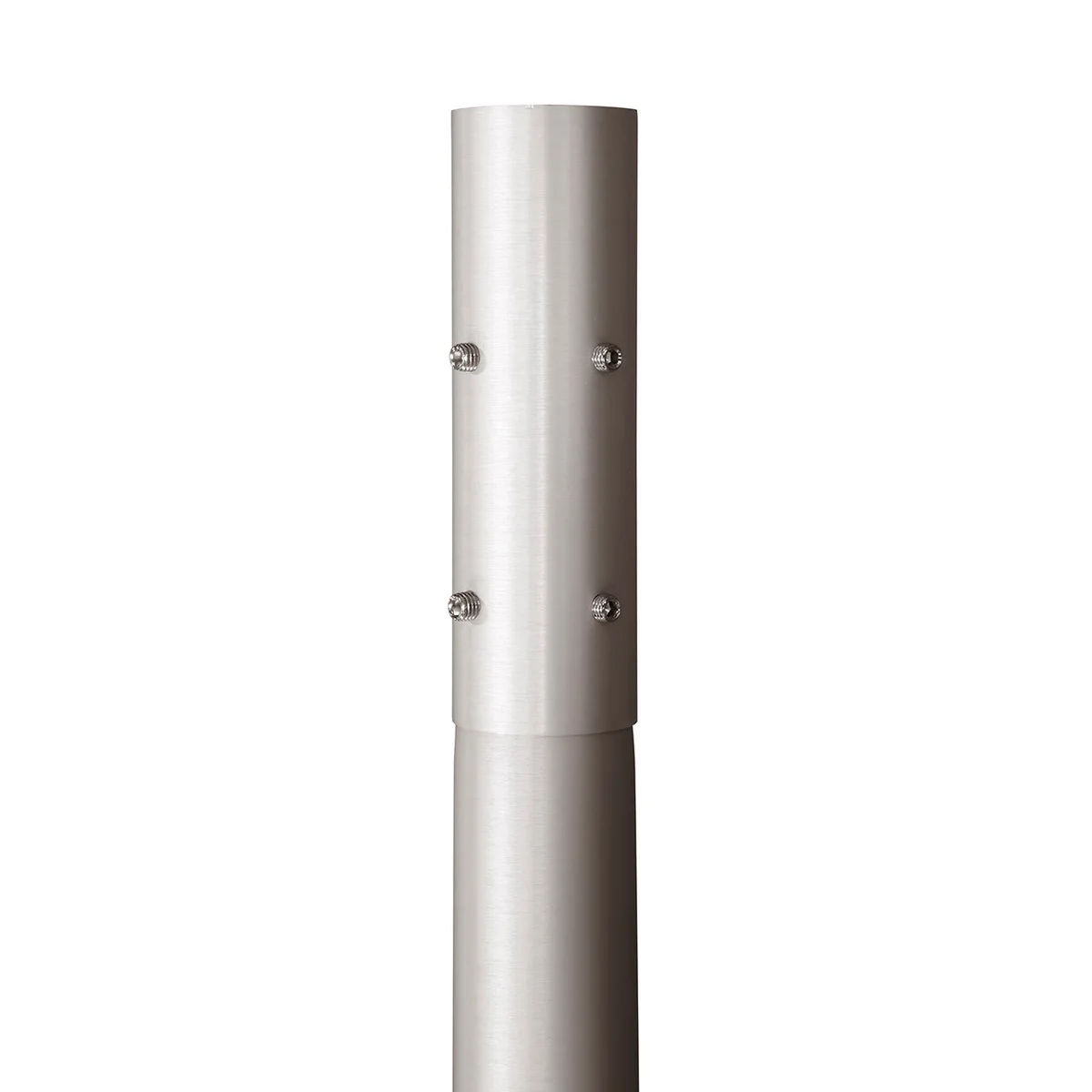

Pole Top: 2 3/8″ tenon is standard. 3″ tenon or top cap options are available.

Pole Shaft: 30 ft. height above ground, Tapered aluminum shaft with 0.169″ wall thickness. The pole shaft is constructed of seamless extruded tube of 6060 Series Aluminum Alloy.

Handhole: 3.35″ X 15.75″ handhole is located 28 inches above ground. Handhole cover with 2 Tamper-Resistant Screws is provided. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.

Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 2 Hex Nuts and 2 Flat Washers. An actual size paper anchor bolt template is provided.

Bolt Circle Range: 10 1/2″-11″.

Base Cover: A 2-piece ABS plastic base cover is provided. Plastic rivets are included to securely attach the 2 pieces together after pole installation.

Color: Dark Natural Aluminum.

Warranty: 10 Years.

Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
