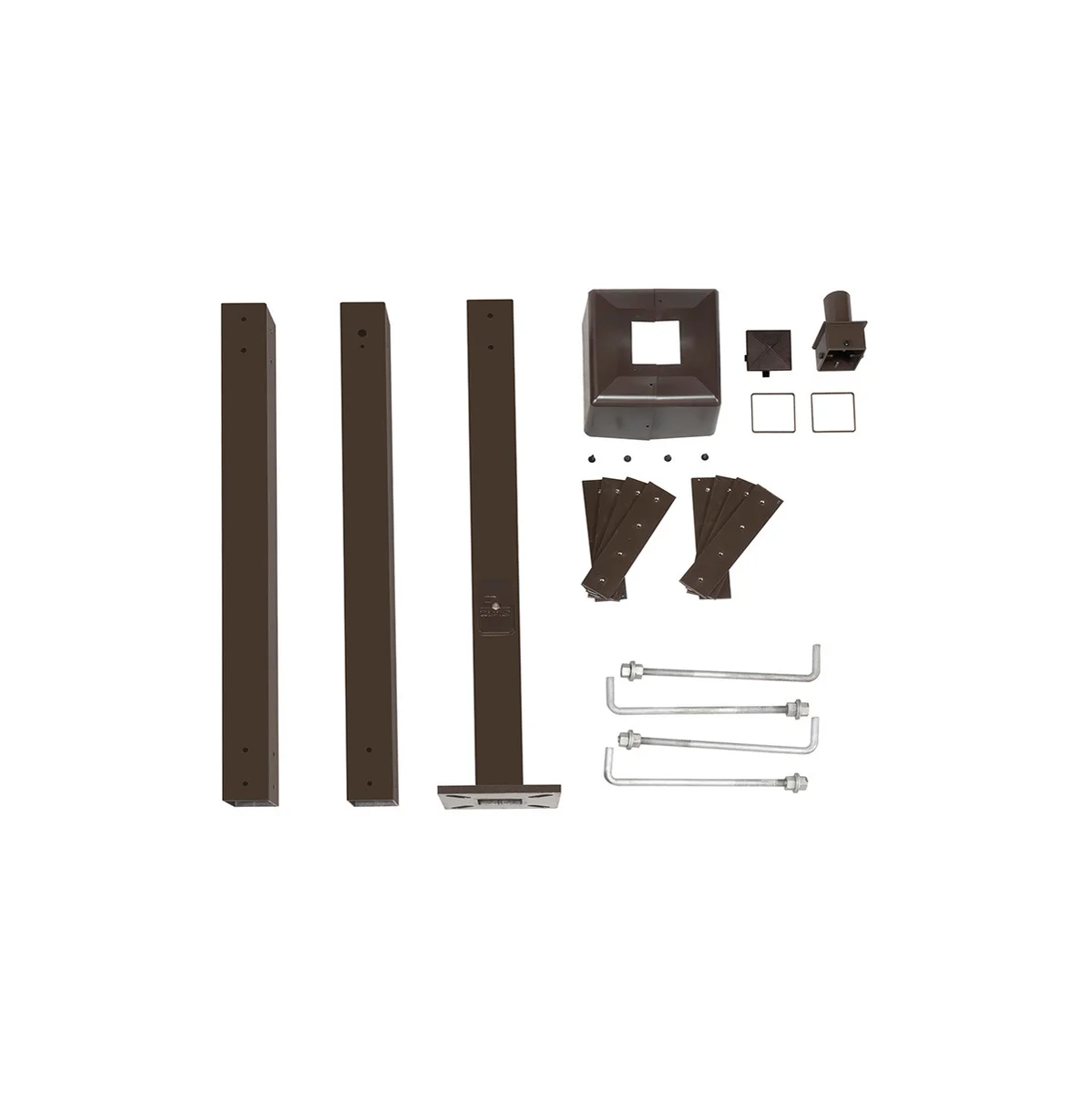

Quick Ship – 8 Foot EZ Sectional Steel Light Pole, 4 Inch Wide, 11 Gauge

Pole Top Options: Drilled with our standard pattern on all 4 sides with easily removable plastic plugs in case holes are not used. Pole cap is provided unless a tenon is required. A 2-3/8” diameter X 4” long tenon adaptor is available as an option.

Pole Shaft: 4′ square 11 gauge commercial grade steel with minimum yield strength of 50,000 psi.

Handhole: Reinforced, 3” X 5” size handhole is located at 18 inches from the base. A ground lug with set screw is located near the handhole opening for proper grounding of the pole.

Color: Dark Bronze.

Anchor Bolts: A set of 4 galvanized steel anchor bolts is provided with each pole assembly. Each anchor bolt includes 2 nuts and 2 washers. Top portion of the anchor bolt is threaded for securing and leveling the pole with the provided nuts and washers. An actual size paper anchor bolt template is provided. Hardware: Stainless steel hardware is provided.

Bolt Circle: 8-1/2″ (Bolt Circle Range 8″-11″)

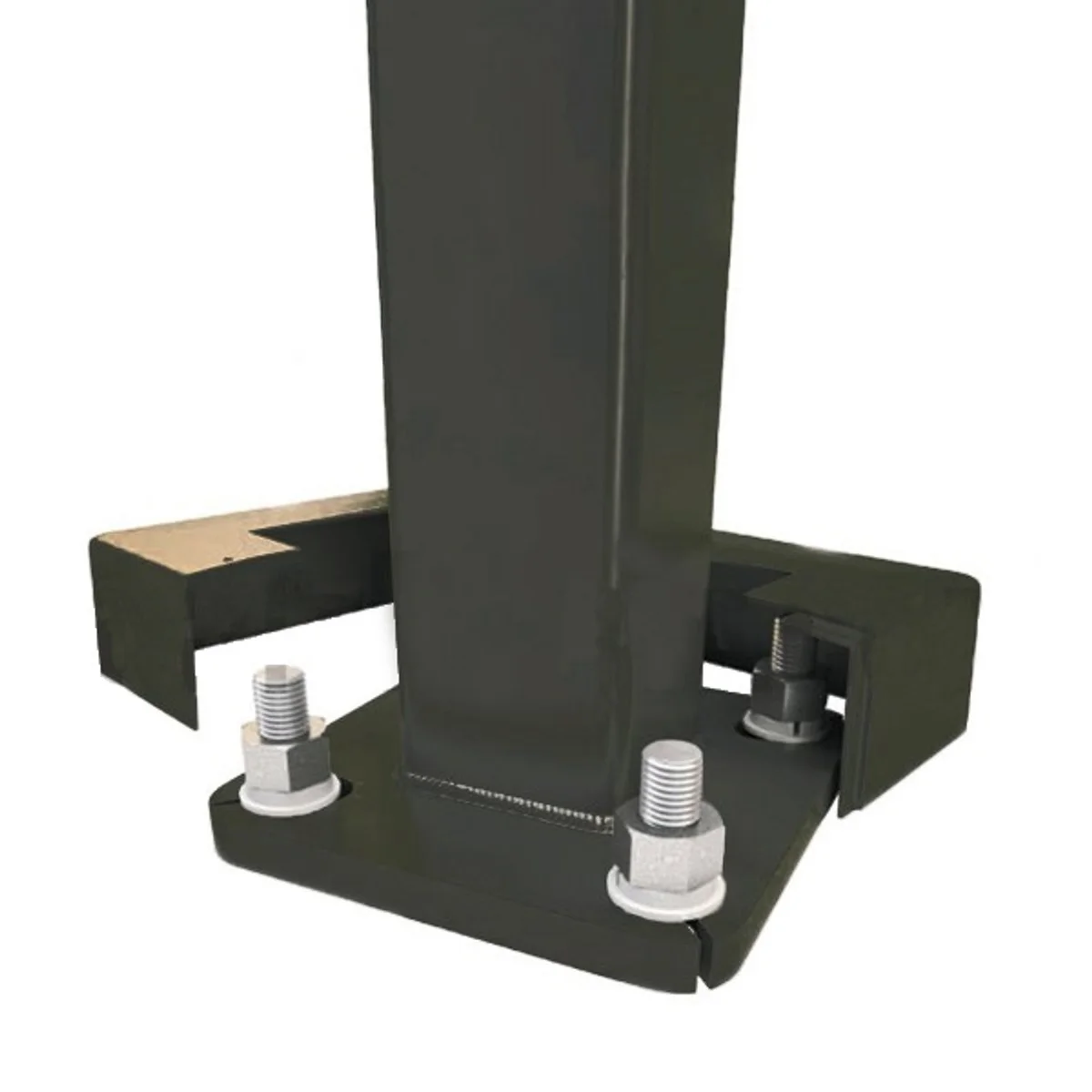

Base Cover:  Two-piece ABS plastic base cover is provided.

Warranty: 1 Year.

Foundation design: Foundation should be designed by an engineer familiar with local soil and wind conditions as well as local code where the pole(s) will be installed.
